100mm Effective Travel Length Mini Linear Rail Guide Lead Screw T6x1 with NEMA11 Stepper Motor for DIY/CNC Router Parts X Y Z Linear Stage Actuator
Product details
| Management number | 208572625 | Release Date | 2026/03/22 | List Price | $21.92 | Model Number | 208572625 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

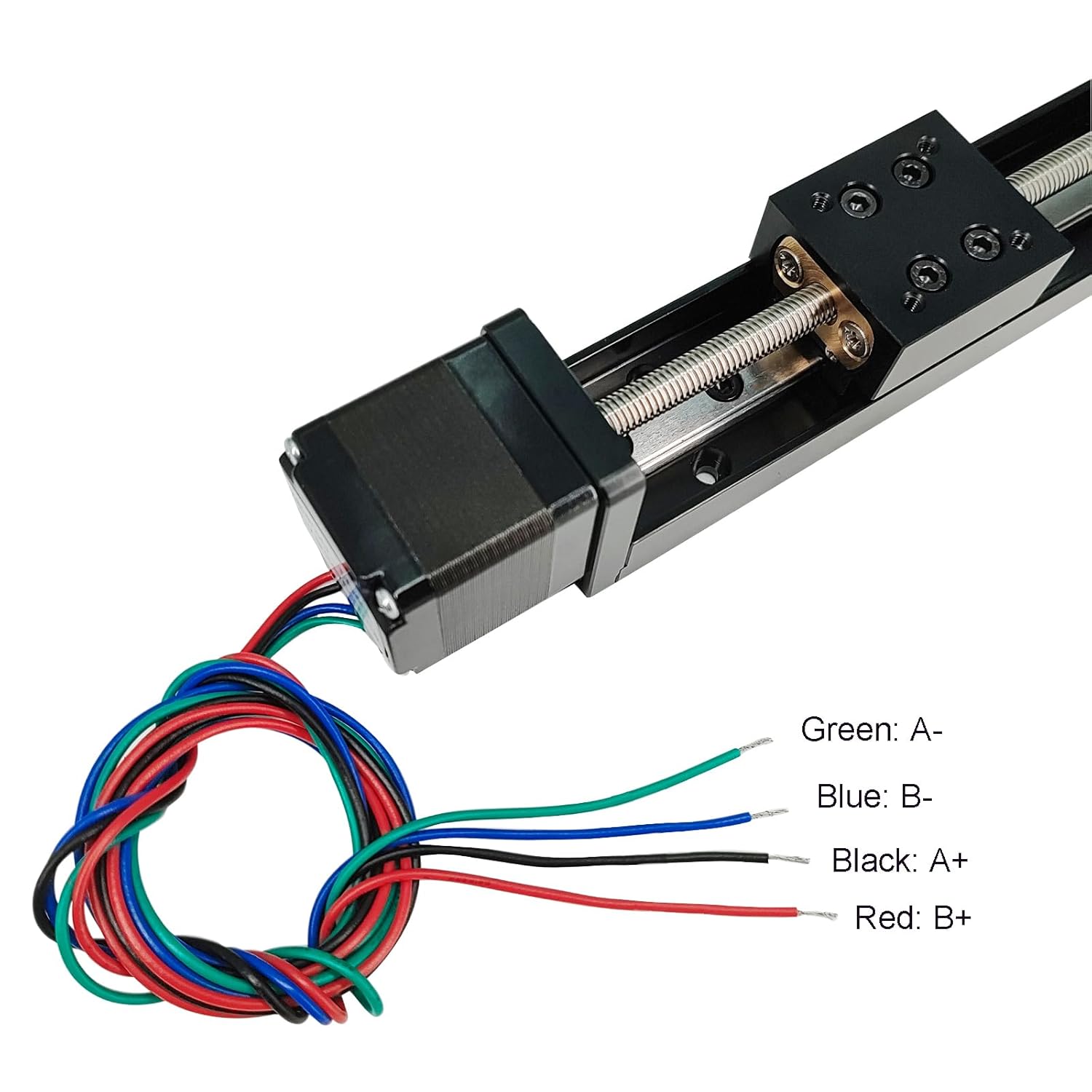

Make sure you have the drive and controller, no drive and controller stepper motor will not work Stepper motor Parameter: Step angle: 1.8 degree Motor flange size: 28mm Motor length: 30mm Holding torque: 6N.cm Current: 0.6A Resistance: 5.5 ohm Inductance: 3.2 mH Rotor Inertia: 8g.cm Lead wire: 4pcs Wiring: Red: A+ Blue: A- Green: B+ Black: B- Linear Stage Actuator Parameter: Effective Travel Length: 100mm Total length :176mm Type: linear system moulde Lead Screw type: T6x1:diameter 6mm and lead 1mm pitch 1mm Weight: 326g Package Content: 1pcs Linear Stage Actuator with NEMA11 Stepper Motor
- 【Load】Horizontal maximum load capacity: 2.5kg; Vertical maximum load capacity: 1kg
- 【Accuracy】Repeat positioning accuracy of ± 0.05mm
- 【Speed】Speed: 0-120mm/min
- 【Motor】Motor size:28*28*30mm,Motor voltage:DC 24V,Current: 0.5A,Step angle:1.8 degrees
- 【Effective Travel】100mm Effective Travel,T6x1:diameter 6mm and lead 1mm pitch 1mm ( The lead screw moves 1mm in one turn)
| Manufacturer | Befenybay |
|---|---|
| Item model number | BE073-2 |
| Product Dimensions | 6.89 x 1.18 x 1.34 inches; 0.28 ounces |
