16-28 Gauge 9 Conductor Electrical Wire 15FT-200FT Shielded Wire 16-28AWG Electrical Wire，UL Certified Low VolTage Cable Tinned Copper Hookup Wire PVC Cable(320ft,28AWG-9C)

Specification:Rated voltage: 300VTest voltage: 2000VRated temperature: 80℃Conductor: tinned copper wire, strong corrosion resistanceInsulation: Special rigid PVC insulationInner Shield: Aluminum Foil Mylar Wrapped ShieldBraid: Bare copper wire or tinned copper wire braid shield.Sheath: PVC sheathPassed the VW-1 flame retardant test.Application standard: UL758Product FeaturesPolyvinyl chloride has good mechanical properties, excellent electrical insulation properties, and stable chemical properties. Due to the use of new double-layer shielding of aluminum foil and copper mesh weaving, it can effectively resist electromagnetic wave interference. The twisted pair pitch has excellent anti-crosstalk characteristics and is suitable for the configuration of high-speed signal return lines.Effective flame retardant: The sheath is made of flame retardant material, which is safe and secure. It is not easy to burn when away from an open flame. It can effectively prevent fire hazards and ensure the safety of electricityTinned copper wire:22 awg (2-5) Wires 17 0.16mm tinned copper wires inside each cable.20 awg (2-5) wires 21 0.178mm tinned copper wires inside each cable18 awg (2-5) wires 34 0.178mm tinned copper wires per cableTin plating not only improves the electrical conductivity, but also has excellent corrosion resistance and oxidation resistance, which can greatly extend the service life of the wire compared with ordinary copper cores. It's also better suited for welding.Notice:For example: "C" in 2C-16AWG indicates the number of coresOur products can be customized according to your needs, please contact us if necessary!

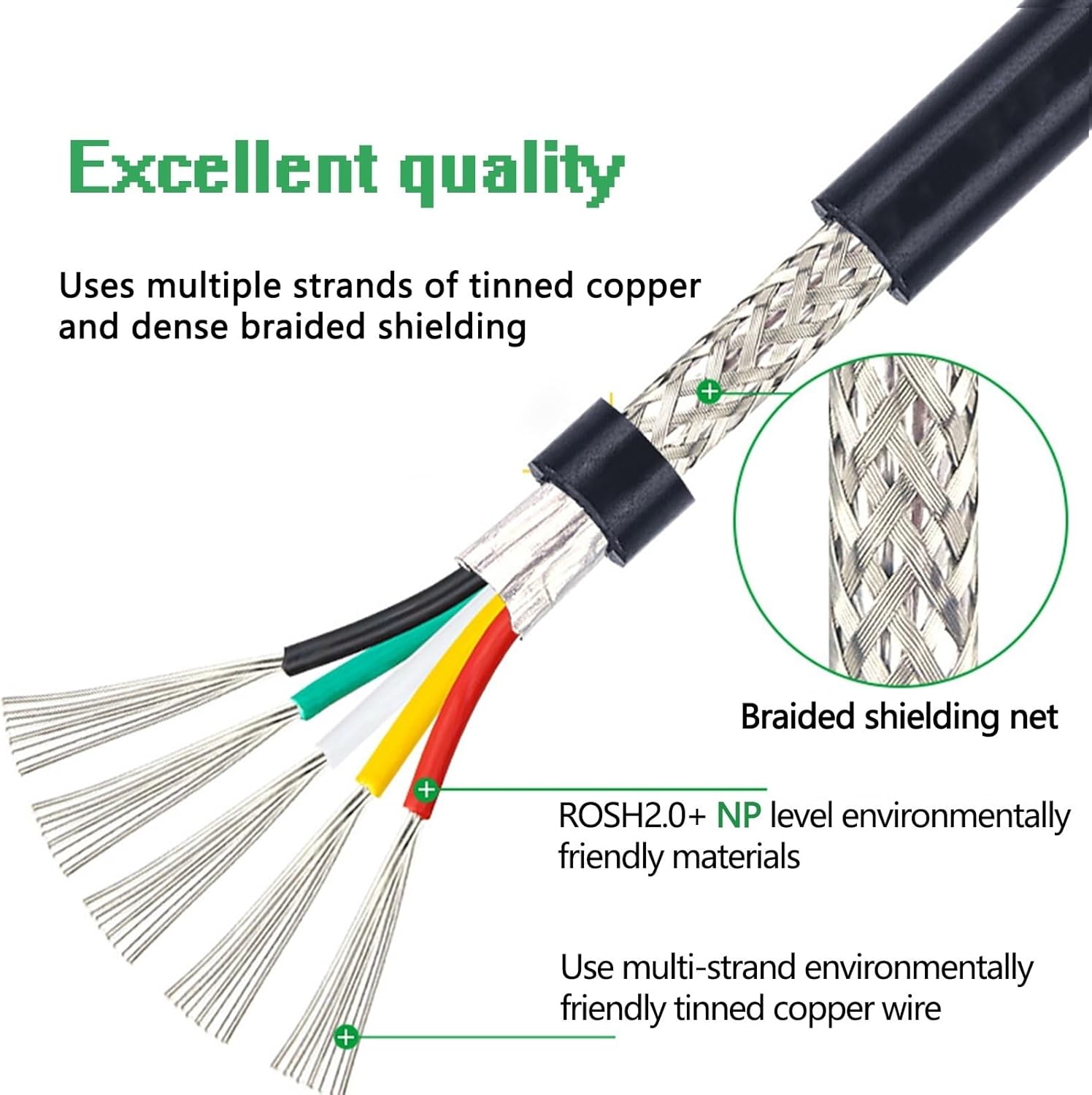

• Durable Construction：Built with multi-strand twisted copper or tinned copper conductors for enhanced corrosion resistance and stable signal transmission. Rigid PVC insulation ensures long-term reliability
• Enhanced Shielding：Double-layer protection with aluminum foil and copper mesh braid helps minimize electromagnetic interference and reduces signal crosstalk in demanding environments
• Heat-Resistant Sheath：The outer sheath is made of heat-resistant material that improves electrical safety. Designed to reduce the risk of overheating during extended use
• Wide Compatibility:Ideal for compact electronic systems that require shielding and flexibility, such as LED systems, automation equipment, power supplies, transformers, and solar panel connections
• Multiple Options Available:Offered in 7–20 core configurations to meet various installation needs. For custom specifications or technical support, feel free to contact us
