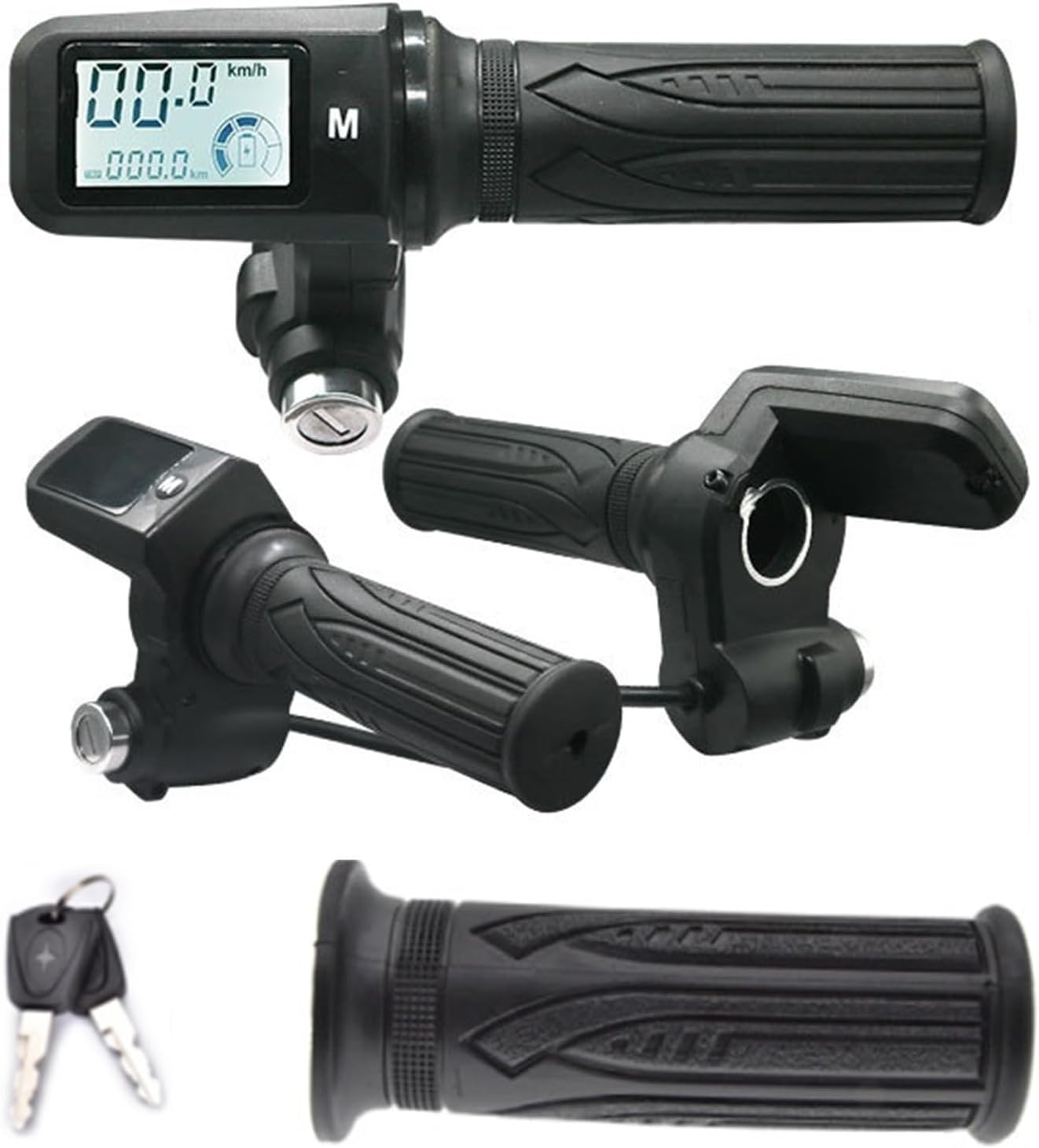

1pair E-Bike Throttle Handlebar 24V-72V Electric Scooter Tricycle Bicycle Grip Handlebar LED Display Practical Cycling Accessory(8pin with 3 gear speed adjustment)

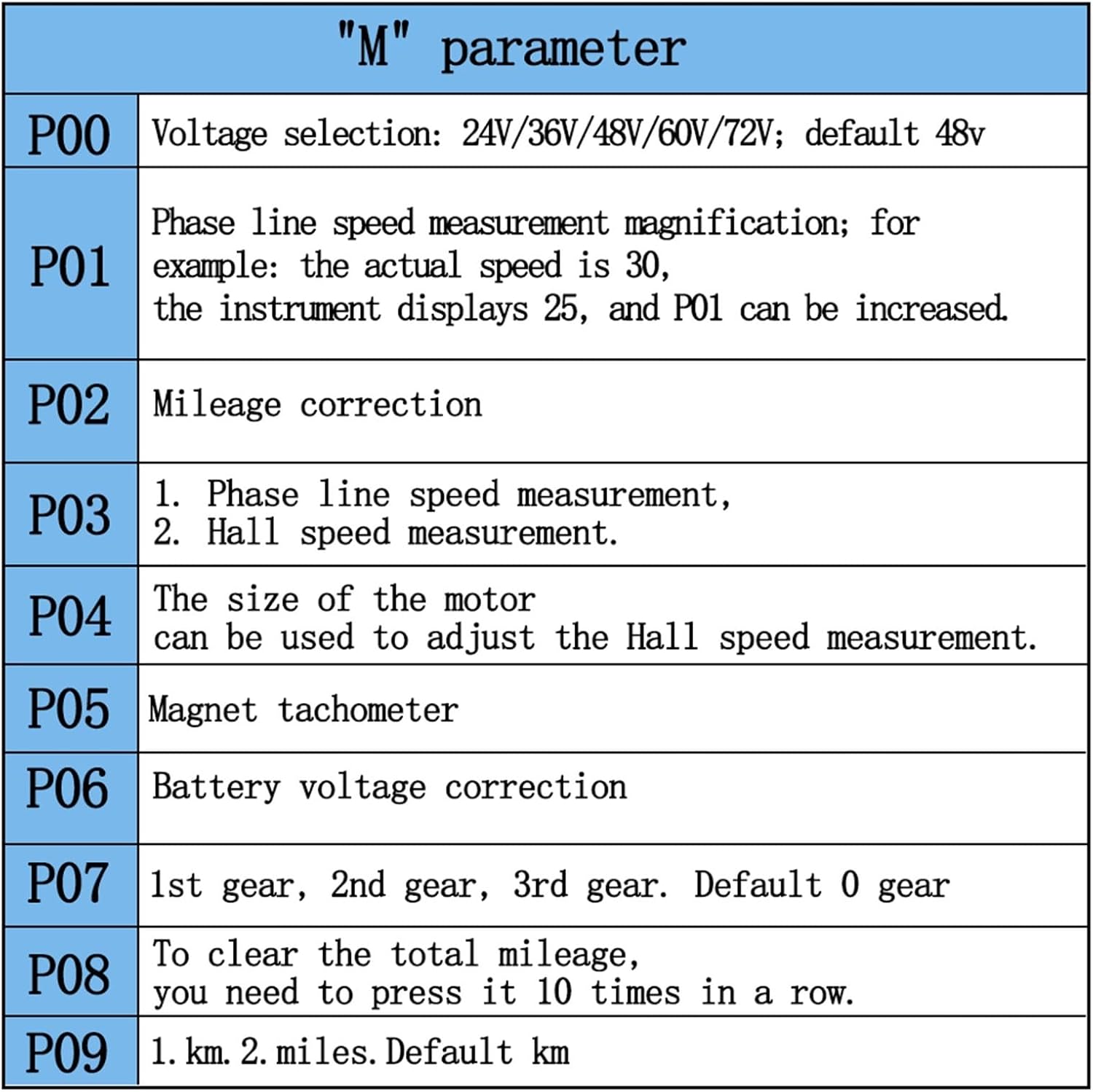

Description:*By turning the real-time voltage value can accurately determine the amount of the remaining amount of electricity.*To avoid traveling on the way without electricity and accurate judgment of the lithium battery is damaged.*By turning the real-time voltage value can accurately determine the judge the quality of lithium battery.*Automatic to identification electric vehicles' voltage under 100V, support 36V or 48V ，60V，72V used and real-time display.* throttle for electric bike, scooter , tricycle, and other electric vehicle.*The upgraded model supports 3-speed speed adjustment*Larger screen display can display more information, including mileage, speed, power, and voltage, .Specifications:Material:ABS + RubberColor:BlackCable length: 1.7M (Approx.)connection type :6pin， 8pin(only 8pin support 3 gears adjustable speed)for :Electric scooters, bicycles, motorcycles, tricycles, .A hall sensor needs to be connected to match the speed.Line descriptionBrown: Hall speed wireDark blue: high speedLight blue: low speedWhite: Power+Yellow: Electric door lockRed: 5v power supplyGreen: signal lineBlack: GNDLCD throttle "M" operation1. Press and hold "M" to turn on the power, and wait for P00 to be displayed to release the power.2. Click "M" to switch adjustment options, main menu: P00-P09.3. After selecting the corresponding option, long press to enter the next step. (For example: long press P00 to enter the voltage option: click the M button to select the voltage, then long press the M button to select, restart the LCD throttle to usePackage include:1 pair x Bicycle handlebar with display

• 【LED Display】The electric scooter handlebar features an LED display, which accurately shows the real-time voltage value, allowing you to determine the remaining battery power. This prevents you from running out of electricity during your journey and helps you monitor the condition of the lithium battery.
• 【Compatible】Designed to be compatible with various vehicles, including bikes, scooters, tricycles, and more. This throttle is suitable for 36V, 48V, 60V, and 72V systems, automatically identifying and supporting different voltage levels. It provides usability and real-time voltage display.
• 【3-Speed Adjustment】This upgraded model of the throttle supports 3-speed speed adjustment. With the push of a button, you can easily switch between different speed settings to match your preferred riding style and environment.
• 【Large Screen Display】Equipped with a larger screen display, this throttle provides comprehensive information including mileage, speed, power, and voltage. The clear and easy-to-read display allows for convenient monitoring of crucial riding data.

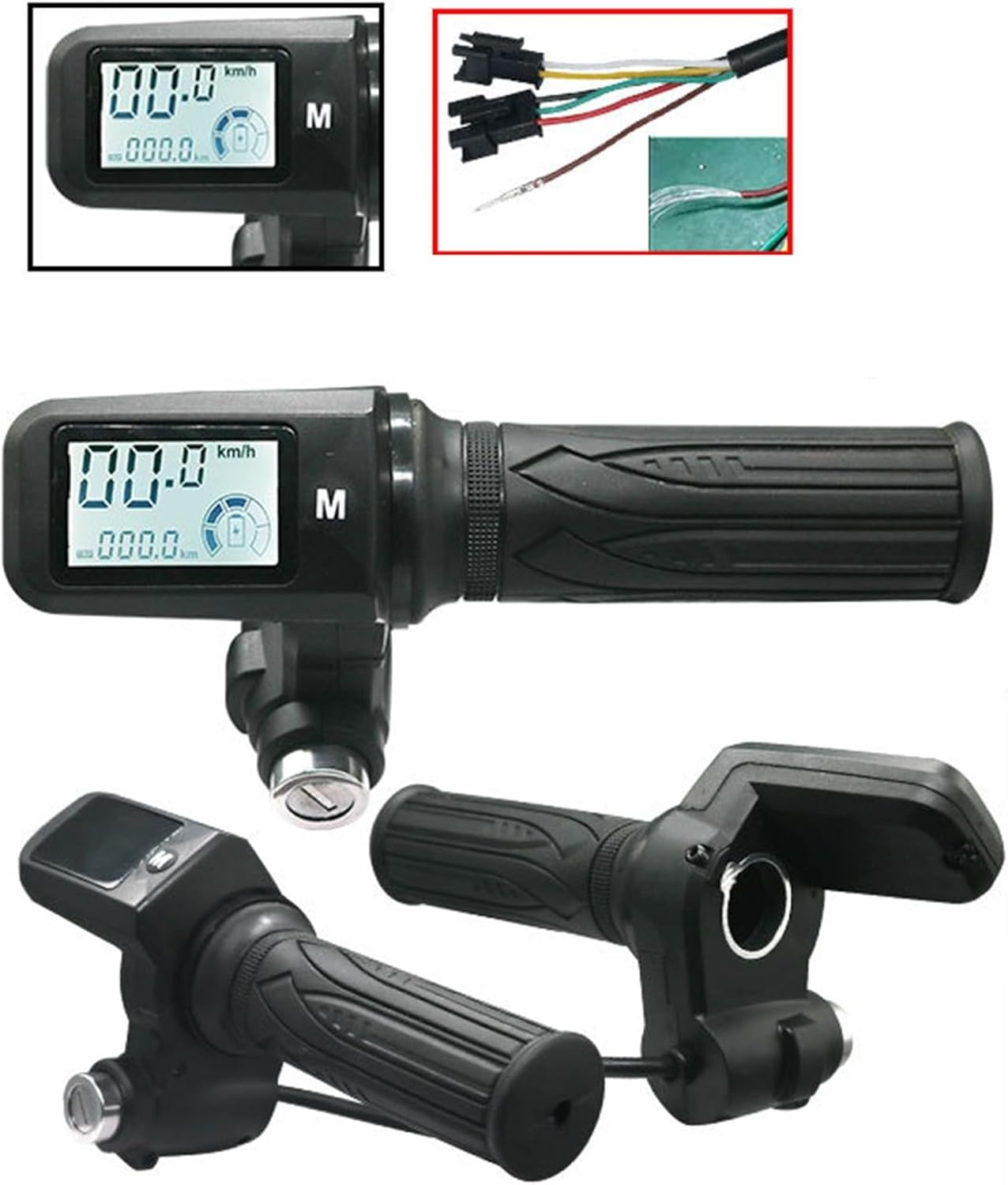

• 【Easy Installation】The handlebar throttle is made of ABS and rubber materials. It comes with a 7-meter cable for easy connection. follow the color-coded line description (Brown, Dark blue, Light blue, White, Yellow, Red, Green, Black) to correctly install the throttle and connect the necessary components.
