20 AWG 2 Conductor (UL) Certified 100% Copper Type CMP Plenum Rated Shielded Sound & Security Cable - 500 Feet
Product details
| Management number | 208223822 | Release Date | 2026/03/22 | List Price | $61.12 | Model Number | 208223822 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- This Plenum rated cable has been designed specifically for use intercom, sound, alarm and security circuits, and It is approved for installation per NEC (National Electric Code) Articles FPLP/760, CMP 800, CL3P, and CL2P725. Though approved for air plenum, it can be used anywhere a stationary control circuit is needed, up to 300 Volts. It is not rated for outdoor use or direct burial.<br><br>

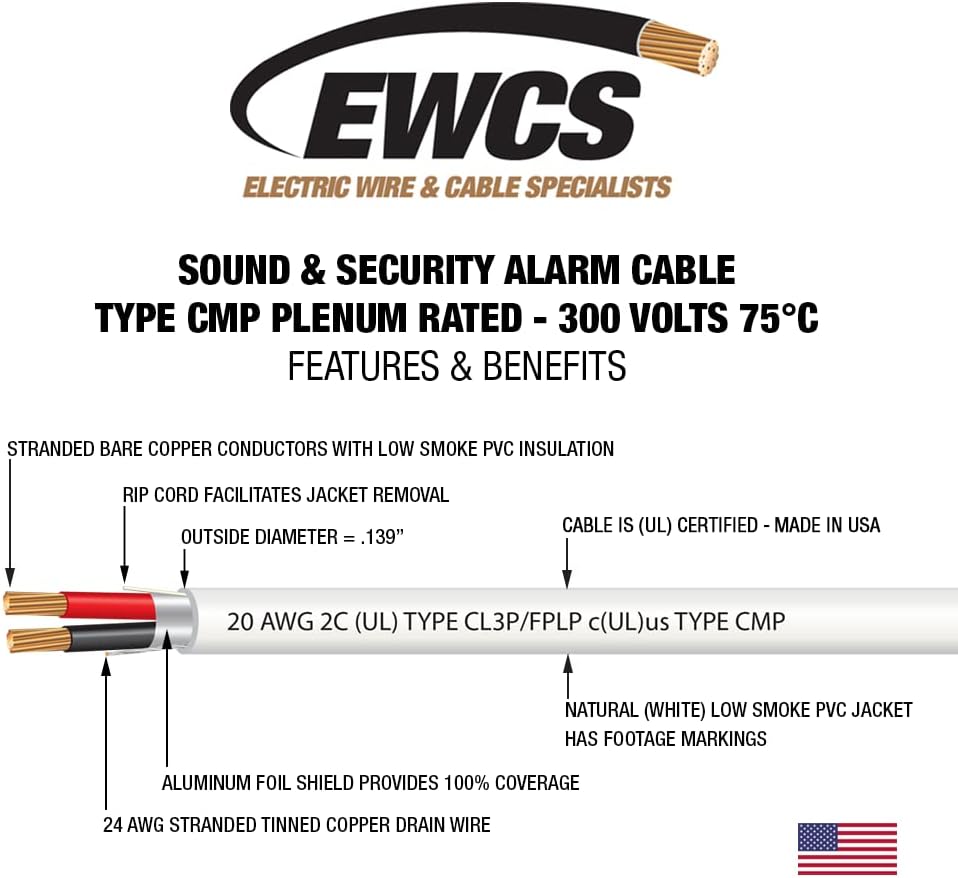

- This cable consists of two 20 AWG 7/Strand 100% bare copper conductors color coded Red & Black. It is rated for 300 volts 75C. It is shielded with a 100% aluminum mylar shield and the drain wire is 24 AWG stranded tinned copper<br><br>

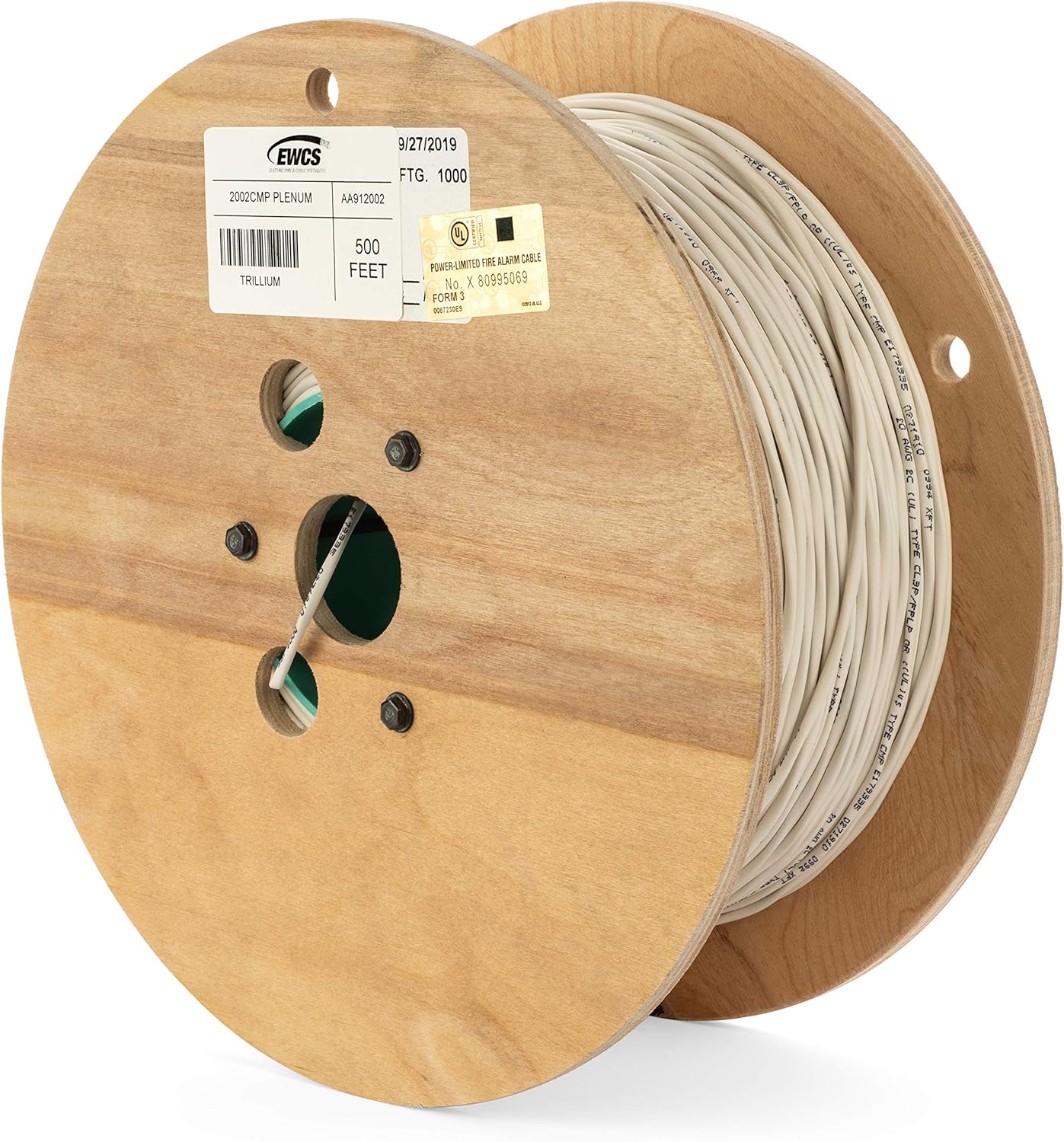

- The cable is covered with a Low Smoke White PVC jacket. Footage markings have been added to the jacket so you can always determine the amount remaining on the spool. The cable ships on a 12” diameter plywood spool.<br><br>
- This cable has a diameter of .139” and weighs 19# per 1000 Feet. The 20 AWG 7/Stand bare copper conductors are made with 100% pure copper. They are insulated with color coded low smoke PVC.<br><br>
- All EWCS products are proudly made in the USA! Have a job that needs another conductor or pair count or requires a different length? EWCS offers a selection of hundreds of electronic & fire alarm cables, rated Riser or Plenum in non-shielded or shielded configurations
| UPC | 817888026042 |
|---|---|
| Size | 500 Feet |
| Brand | EWCS |
| Color | white |
| Gauge | 20.0 |
| Voltage | 300 Volts |
| Material | Copper |
| Item Weight | 7.6 pounds |
| No of wires | 2 |
| Part Number | EWCS2002CMPS-500 |
| Cable Length | 500 Feet |
| Manufacturer | EWCSSPEC |
| Batteries Included | No |
| Batteries Required | No |
| Number of Cable Strands | 7 |
