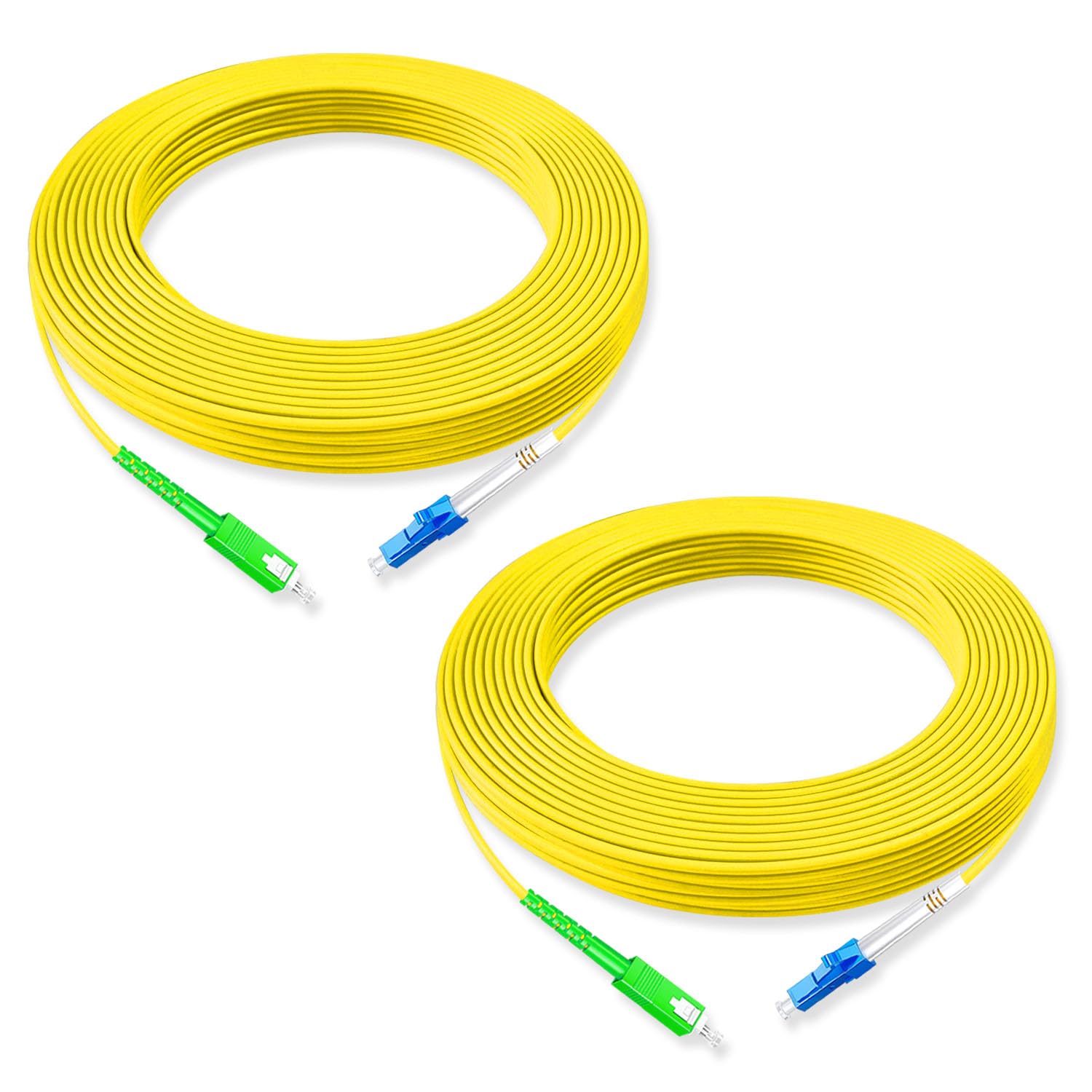

2Pcs 15 Meter Fiber Optic Patch Cord SC APC to LC UPC, Duplex Single Mode Fiber Cable Jumper OS2 G652D 9/125μm, 1310nm/1550nm LSZH 3.0mm

【Product Description】 The main function of fiber optic patch cords is to serve as a key component connecting different devices to the fiber optic cabling system. It is designed with a thick protective layer, typically used for connecting optical transceivers and termination boxes. Fiber optic patch cords are widely used in various applications, including fiber optic communication systems, fiber optic access networks, fiber optic data transmission, local area networks (LAN), fiber optic cable television (CATV), fiber optic sensors, and many other fields. 【Product Details】 Connector：SC/APC to LC/UPC Wire Diameter：3.0mm Fiber Type：Single mode G652D Fiber Count：Duplex Core Diameter：9/125μm Wavelength：1310nm/1550nm Sheath material：LSZH Core type：A-level zirconia ceramic core Insertion Loss：≤ 0.30 Returnback Loss：≥ 50dB Repeatability：≤ 0.2dB Interchangeability：≤ 0.2dB Working Temperature： -20 ℃~70 ℃ Storage Temperature： - 40 ℃~80 ℃ Cable Length：15M Packing Quantity：2 PCS

• 【Main Parameters】2Pcs 15 Meter (3.28ft) SC APC to LC UPC Single Mode Duplex OS2 Fiber Optic Patch Cord，9/125 μm G652D fiber core, which supports 1310nm/1550nm wavelength
• 【High Performance】The fiber patch cord ≤0.2dB repeatability and interchangeability, ≤0.3dB insertion loss, and ≥50dB return loss. The low insertion loss and high return loss ensure stable transmission. which can operates reliably in a temperature range of -20~70°C.
• 【A-B Cable Mark】 the duplex fiber patch cable comes with A-B cable mark for distinguishing the fiber connection, which can make fiber fault checking or fiber connection changing easier.
• 【3.0mm&LSZH Fiber Jacket 】The Fiber Optic Patch Cord is buffered to the specified size of 0.9mm with LSZH material, and a para-aramid yarn is used as a strength member to wrap the 0.9mm buffer layer. The 3.0mm external LSZH jacket is used to protect the internal structure. It is equipped with an A-level zirconia ceramic ferrule, ensuring data transmission quality and providing good tensile performance and flame retardancy for the cable.
• 【OS2 9/125μm Fiber】Compared to traditional Fiber Optic Patch Cords, the 9/125μm OS2 bend-insensitive single-mode fiber optic patch cord has lower attenuation when bent or twisted, making installation and maintenance more efficient.
• 【Wide Application】OS2 fiber optic patch cords are suitable for various network connections, including SFP optical modules, and are widely used in data centers, enterprise networks, telecommunications rooms, servers, cloud storage networks, and other scenarios.
