8330-752 Ceiling Control Box Assembly Replacement Parts Fit for Coleman Mach RV Non-Ducted Air Conditioner A/C Systems with Wall Thermostat, 12 VDC Control Cooling Only, Replace 8330752

The 8330-752 cool-only control box assembly is fit for Coleman Mach non-ducted air conditioner systems with a wall thermostat, ideal for RVs, campers, and mobile homes. The compatibility depends on your thermostat, not your AC unit. Also, you can convert a device with two knobs to run with a normal thermostat, allowing you to connect it to a standard thermostat. This 8330-752 control box kit also fit for 7330G335 or 8330-336 wall thermostat.

• APPLICATION: The 8330-752 cool-only control box assembly is fit for Coleman Mach non-ducted air conditioner systems with a wall thermostat, ideal for RVs, campers, and mobile homes. The compatibility depends on your thermostat, not your AC unit. Also, you can convert a device with two knobs to run with a normal thermostat, allowing you to connect it to a standard thermostat. This 8330-752 control box kit also fit for 7330G335 or 8330-336 wall thermostat.
• 12 VDC, COOL ONLY: The 8330-752 A/C control box is used 12 volt dc, for use with Cool-Only, non-ducted air conditioner systems with a wall thermostat. Ideal for RVs, campers, and mobile homes with non-ducted air conditioning units.
• EQUIPPED WITH FREEZE SENSOR FOR ADDED PROTECTION: The 8330-752 air conditioner control box assembly is equipped with freeze sensor which helps prevent evaporator coil damage by monitoring temperatures, ensuring your air conditioner runs safely even in cooler conditions. This feature extends the lifespan of your AC unit.

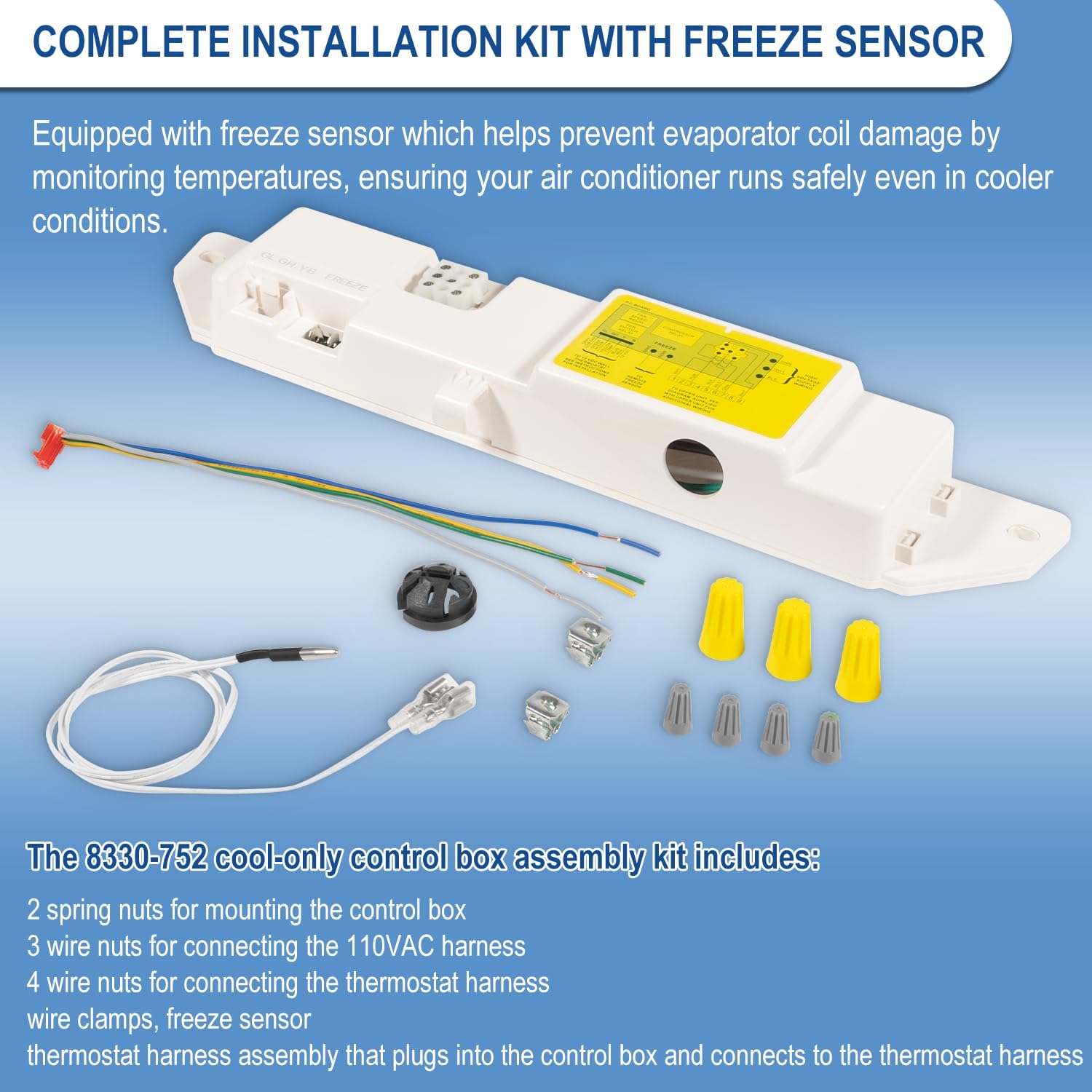

• COMPLETE INSTALLATION KIT: The package incluede all hardware for easy installation. The 8330-752 cool-only control box assembly kit includes: 2 spring nuts for mounting the control box, 3 wire nuts for connecting the 110VAC harness, 4 wire nuts for connecting the thermostat harness, wire clamps, freeze sensor, thermostat harness assembly that plugs into the control box and connects to the thermostat harness.

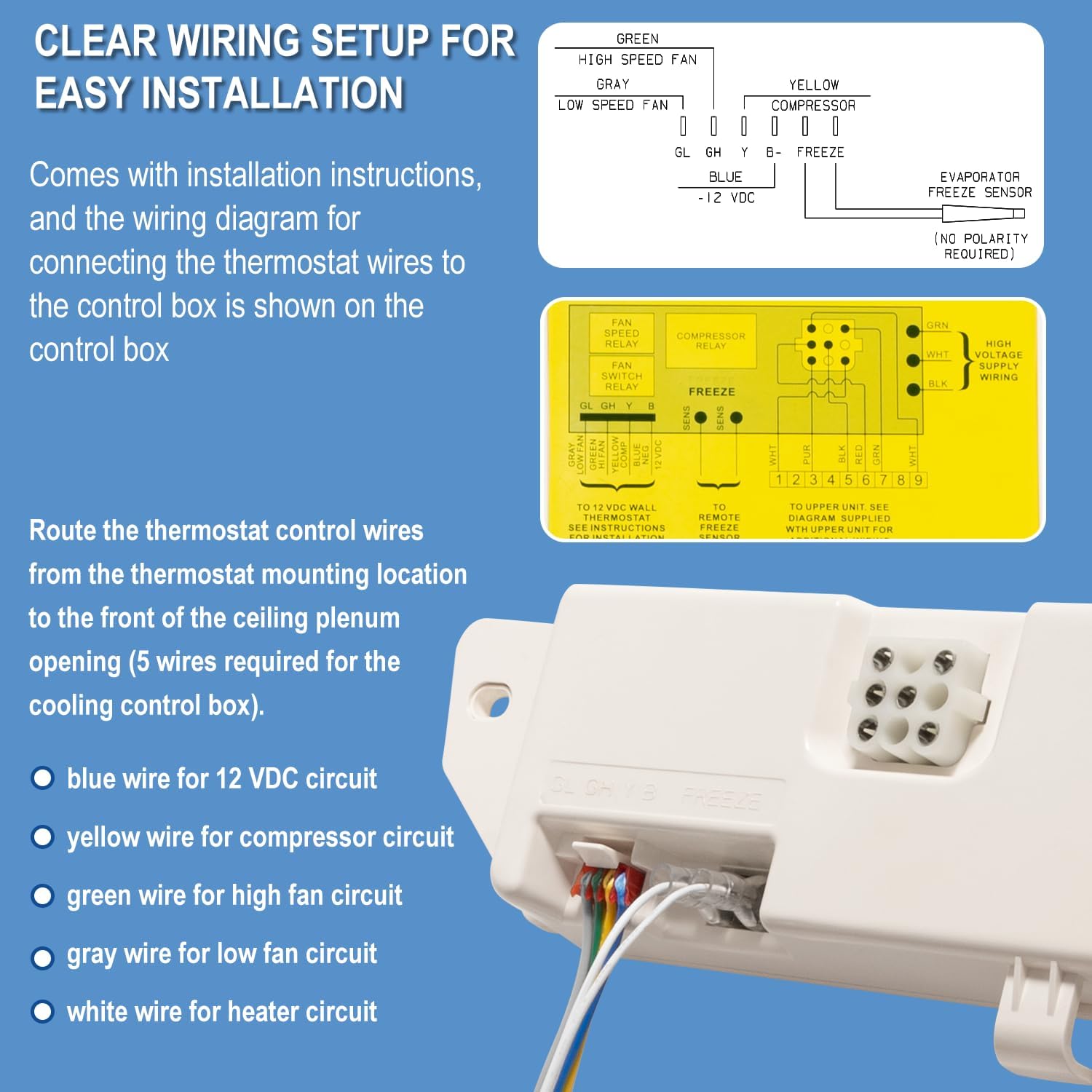

• CLEAR WIRING SETUP FOR EASY INSTALLATION: Route the thermostat control wires from the thermostat mounting location to the front of the ceiling plenum opening (5 wires required for the cooling control box). These wires are as follows: blue wire for 12 VDC circuit, yellow wire for compressor circuit, green wire for high fan circuit, gray wire for low fan circuit, white wire for heater circuit. ( The wiring diagram for connecting the thermostat wires to the control box is shown on the control box)
