ATOPLEE Countersink Chamfer Tool,4pcs 90 Degree High Speed Steel Countersink Bits for Wood,Metal, Fiberboard, Plywood, Plastic, PVC,Size 2-5,5-10,10-15,15-20mm
Product details
| Management number | 219053995 | Release Date | 2026/05/03 | List Price | $6.80 | Model Number | 219053995 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Note】Recommended speed of countersink drill bit: 500-1500RPM . The harder the plate and the larger the diameter of the chamfering drill, the slower the required speed, and it is recommended to use with cutting fluid to reduce wear.

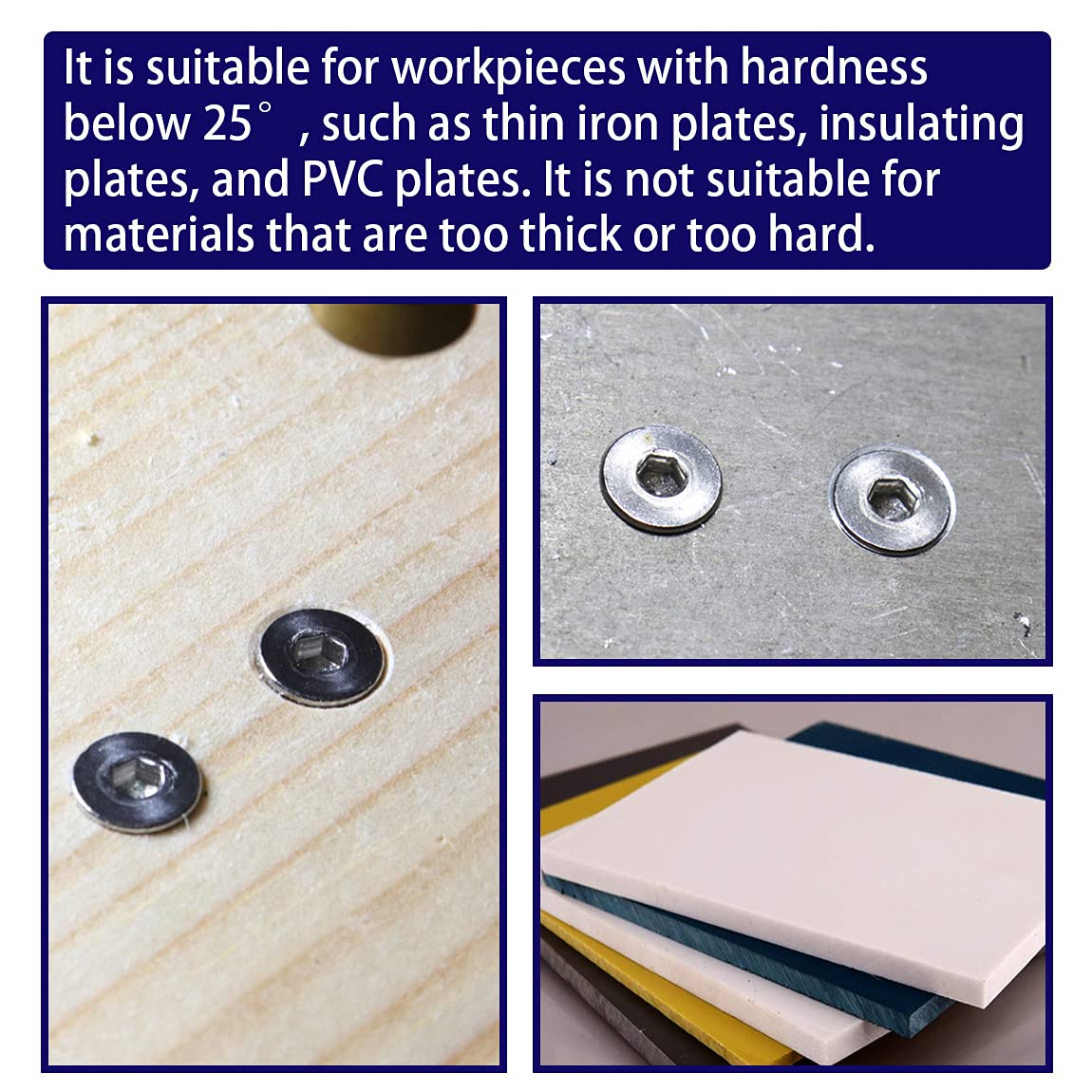

- 【Material】 High speed steel 4241. It is suitable for softer materials with hardness below 25°, such as thin iron plates, insulating plates, and PVC plates. It is not suitable for materials that are too thick or too hard.Can not used for steel.
- 【Size】Chamfer Range:2-5mm, 5-10mm, 10-15mm, 15-20mm；Shank Diameter: 6mm, 8mm, 10mm, 12mm；Head Diameter: 10mm, 14mm, 21mm, 33mm.
- 【Tips】There may be slight burrs on the surface of the product, but it does not affect the use.If you have any questions about the product, please feel free to contact us, we will try our best to solve the problem for you .
- 【Package Included】4 x Countersink and Deburring Tool.
- 【Wide Range of Use】 Suitable for processing and reaming of iron, aluminium alloy, copper, wood, plastic and other materials, not for direct use in opening holes. Tile, concrete, walls, stone, etc. are not allowed to be used.
- 【Suitable Machines】Suitable for drilling machines, table drills, machining centres, milling machines.But hand drills are not allowed.
- 【Choose the Right Size for the Job 】 For example, if you need to chamfer to 16mm, you need to choose the 15-20mm countersink drill that covers the working range.
| Model | 12110005 |
|---|---|
| Set Name | Countersink and Deburring Tool Set (4 Piece) |
| Brand Name | ATOPLEE |
| Shank Type | Straight |
| Unit Count | 1 Count |
| Item Weight | 8.8 ounces |
| Part Number | 12110005 |
| Point Style | Taper Point |
| Finish Types | Uncoated |
| Manufacturer | ATOPLEE |
| Material Type | High Speed Steel (HSS) |
| Tool Flute Type | Straight |
| Cutting Diameter | 33 Millimeters |
| Number of Pieces | 4 |
| Cutting Angle String | 90 Degrees |
| Surface Recommendation | Aluminum, Metal, Stainless Steel, Wood, Fiberboard, Plywood, Iron, Brass, PVC |
