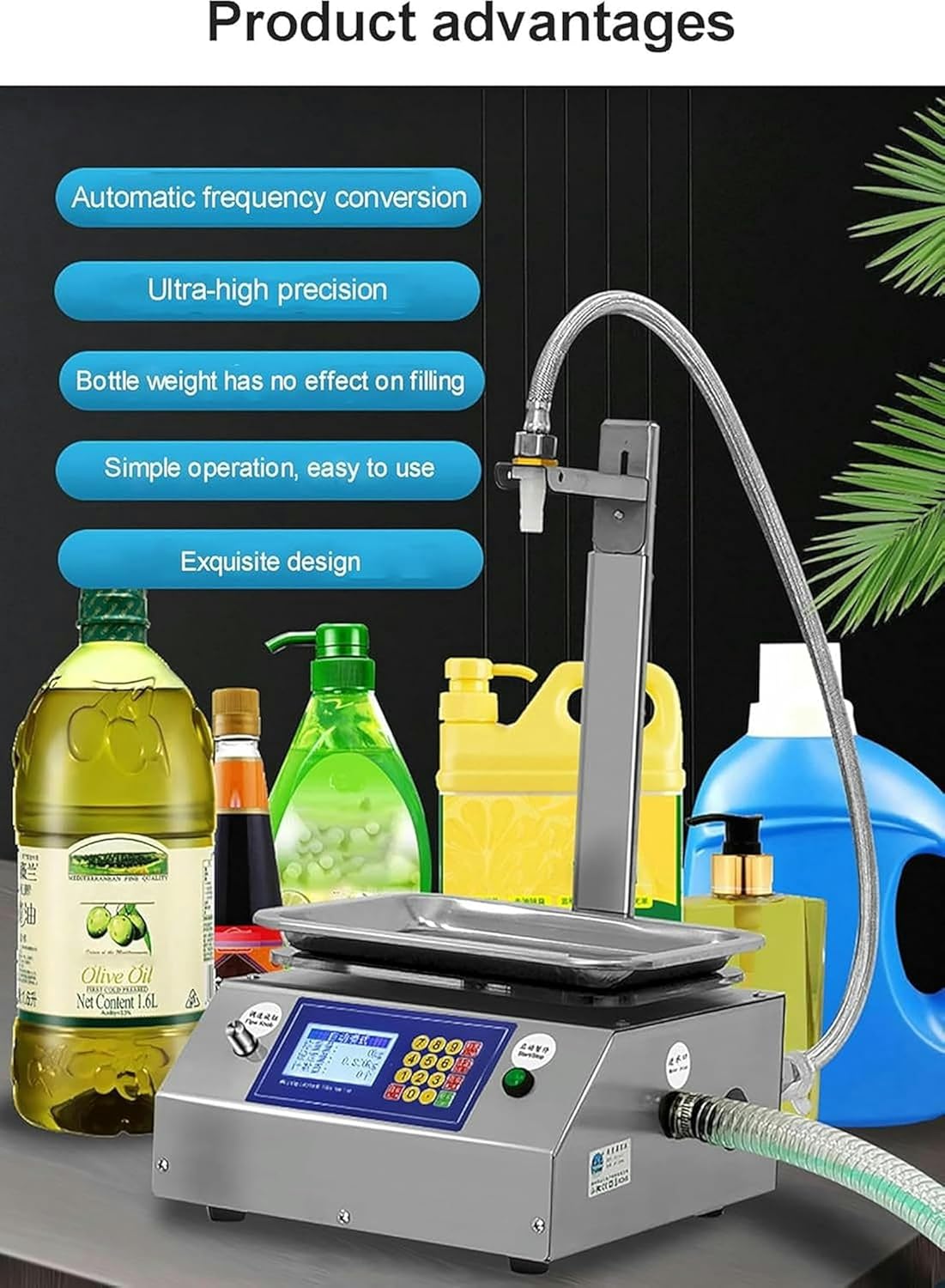

Automatic Filling Machine With Weighing And Digital Control, Equipped With Diaphragm Pump, Suitable For Milk, Water, Wine, Beverage, Soy Sauce, Vinegar, Liquid Filling Machines, 36 Liters/minute~/

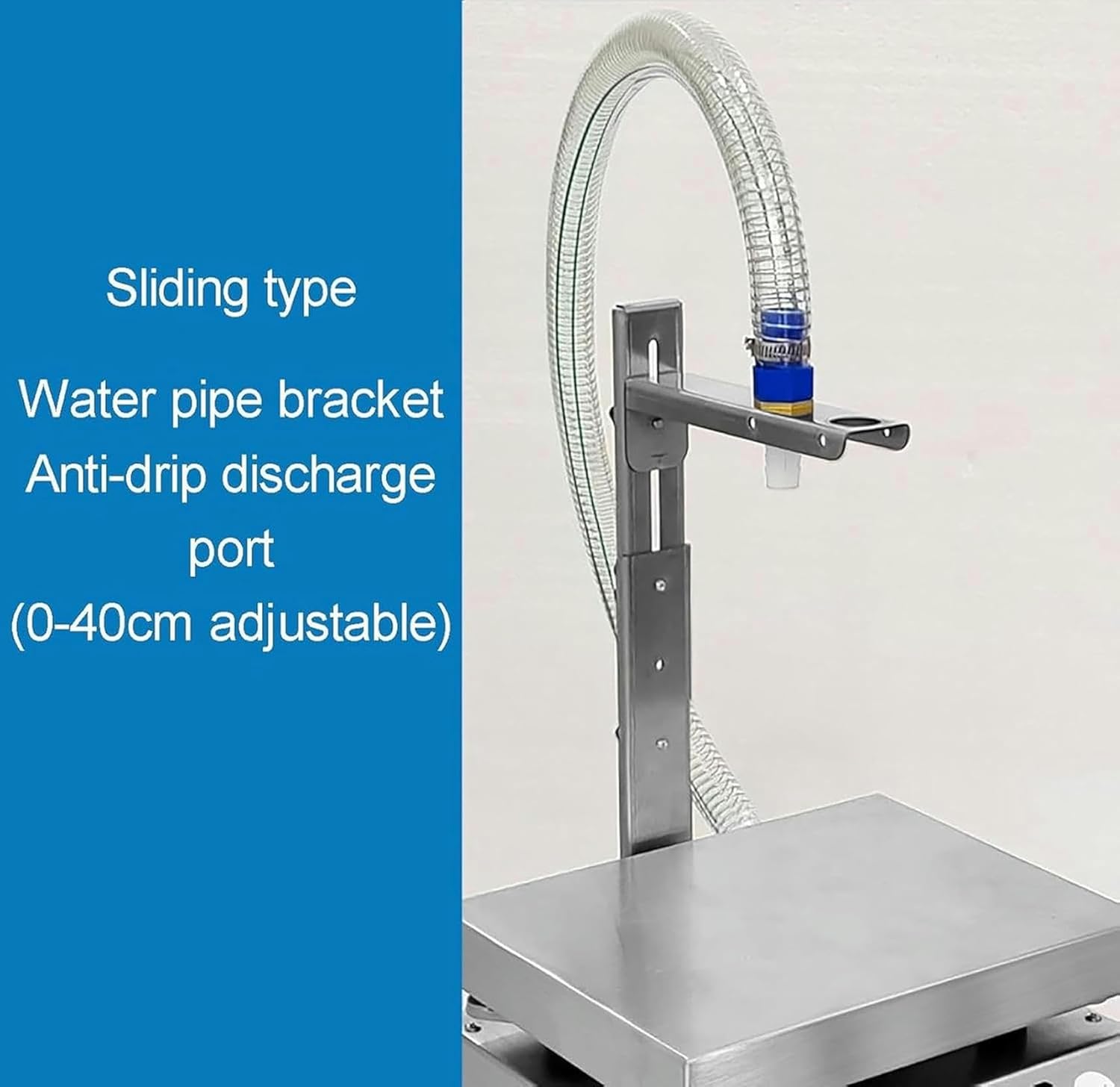

manufacturer:Functional features: real-time weighing, overload alarm, weighing and filling, price filling, regular filling, automatic activation, automatic peeling, automatic transmission, automatic counting, data storage, language selection and other functions.Protection system: This machine has overheat protection, overcurrent protection, and overload protection functions.Product parametersVoltage/Power: 220V/300WFilling range: 50g-30kgWeighing score value: 5GPump type: diaphragm pumpPump flow rate: 36L/minCombination error:Filling head specification: 16mm+12mmFill height: 0-40 centimeters adjustableWater pipe specification: PVC steel pipeInlet pipe length: 2 metersWater outlet pipe length: 1 meter steel pipePackaging size: 35 * 35 * 35cmGross weight: 12.5 kilogramsLanguage selection: can switch between Chinese and EnglishApplicable scenarios: liquid filling, essential oil, essence, Baijiu, edible oil, glass water, beverages, etc.Initial flow rate: The same data as the flow rate value adjusted by the speed knob.Final flow: The flow level at the end of filling, usually adjusted to the minimum allowable flow level.

• Multi functional performance: This liquid filling machine can process beverages, wine, milk, vinegar, soy sauce, alcohol (concentration below 40%), as well as liquids and pasta with good fluidity. It is very suitable for daily use at home or in the workshop. Unlike other filling machines, our filling machine always uses food grade materials. There is no need to worry about corrosion.
• Weight based filling mode: directly input the weight of the product to be filled. Compared to time-based filling machines, there is no longer a need to test and measure complex filling times and speeds. Don't worry about interference from different liquid flow rates.
• Update 36L/min diaphragm pump: Choosing a liquid filling machine is actually choosing a pump. The pump body is separated from the motor, with no mechanical metal parts, no wear on the pump body, long service life, and low failure rate. High file accuracy, with a repetition error of less than ± 1%.
• Fast high flow filling: The filling machine is powered by a solid diaphragm pump. For low viscosity liquids, the flow rate can reach 36L/min. It treats low to medium viscosity liquids like a gentle breeze. From milk to vinegar, they are the first choice for small-scale production. Note: Thicker liquids flow slightly slower.
• Efficient and easy to use: faster filling speed, shorter required time, and smaller than similar bottle filling machines. Simplified disassembly and cleaning. The stainless steel casing is not only corrosion-resistant, but also easy to clean. Easy maintenance ensures that your machine remains clean.
