Battery welder,801HCapacitor Energy Storage Pulse Welding Machine,19.8Kw Industrial Energy Storage Battery Welding Machine

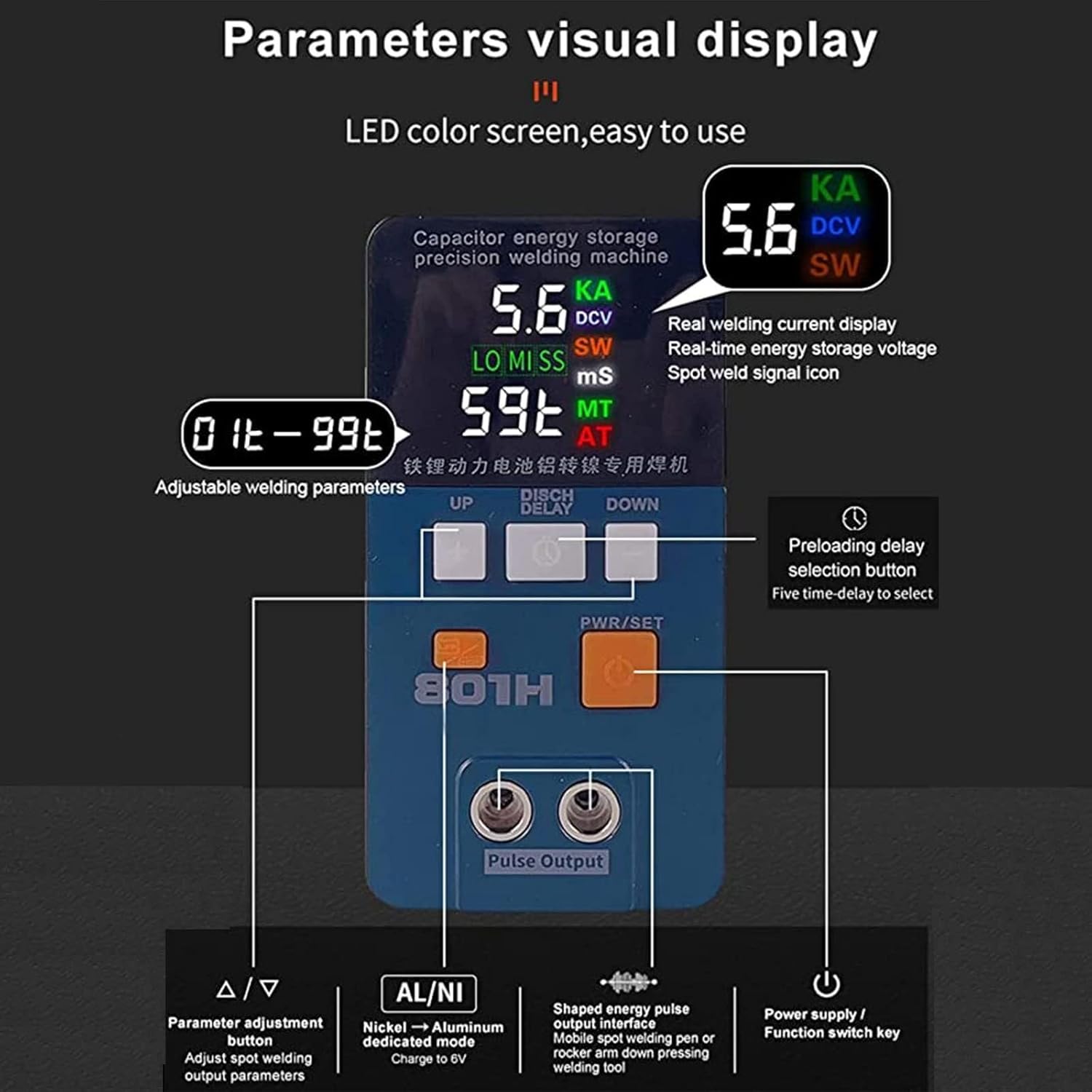

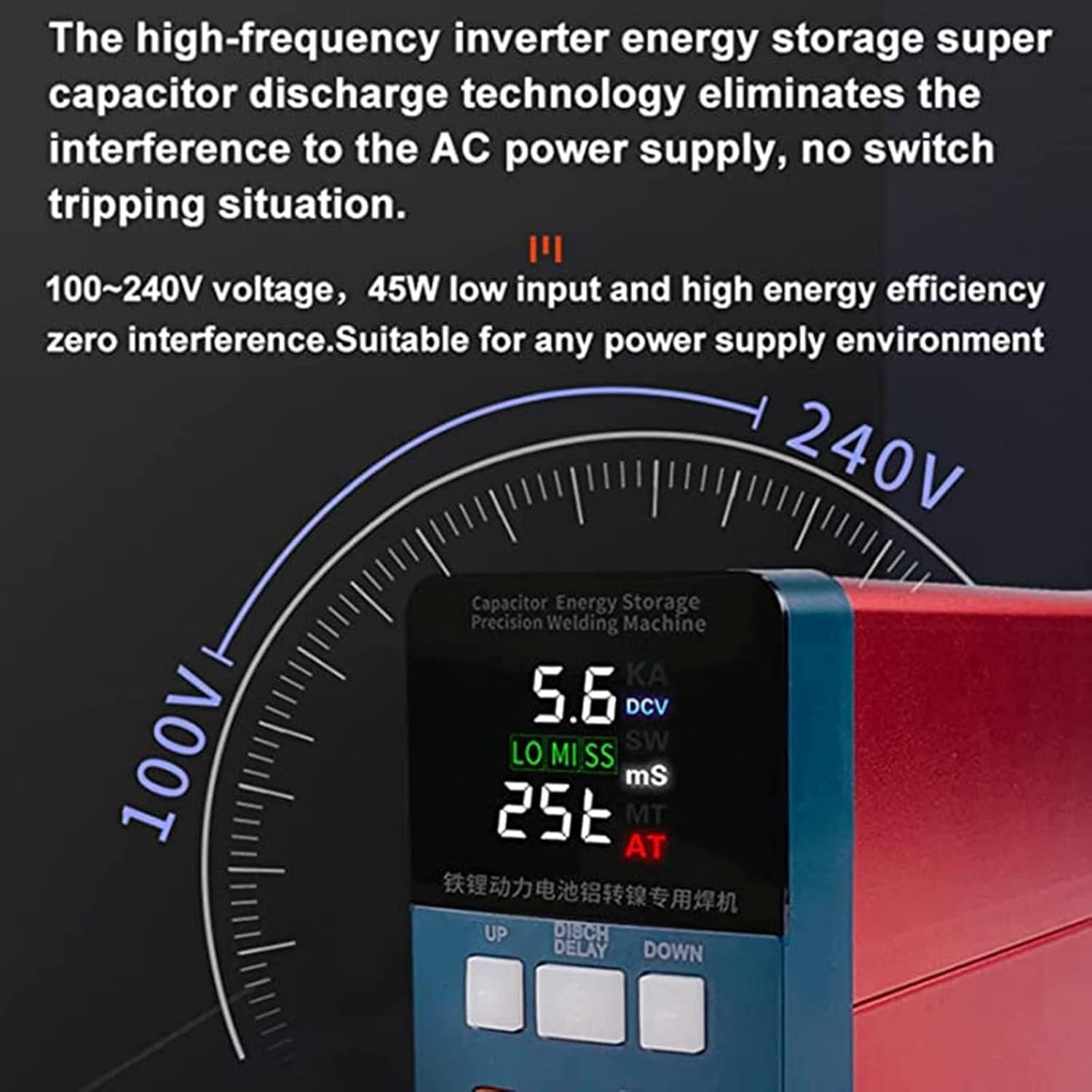

Characteristics:1. Universal voltage 110V-240V wide voltage.2. The range of 0-99 is adjustable, and the welding is more precise and firm.3. LED color display, intuitive parameter display, simple operation.4. Industrial grade durable, can be used continuously for up to 12 hours without protection, and the welding pen will not get hot.5. Low internal resistance spot welding pen, elastic balancing device, good consistency and quality of welding points.6. Used for spot welding battery, metal parts and electronic components.Product parameters:Supply voltage: AC110-240V 50/60HZCharging voltage: 5.6-6VWelding current: 3500A (max)Peak power: 19.8 KWPeak welding power: 11.6 KWPeak welding energy: 238JWeld thickness range: 0.05-0.5mmPulse Time: 0-20msCustomization level: 0~99Trigger mode: automatic AT/foot trigger MTSpot welding method: fixed head spot welding / mobile spot weldingHints:1. Please use a power outlet to ensure stable power supply.2. Please adjust the voltage regulator to the appropriate parameters to ensure the welding effect.

• Heavy Duty Pulse Spot Welder：801H The newly designed cordless spot welder is equipped with two supercapacitors for energy storage and power supply for pulse welding. The machine's Super Energy Gathered Pulse technology combined with a maximum welding power of 11.6 KW ensures a reliable welding effect.

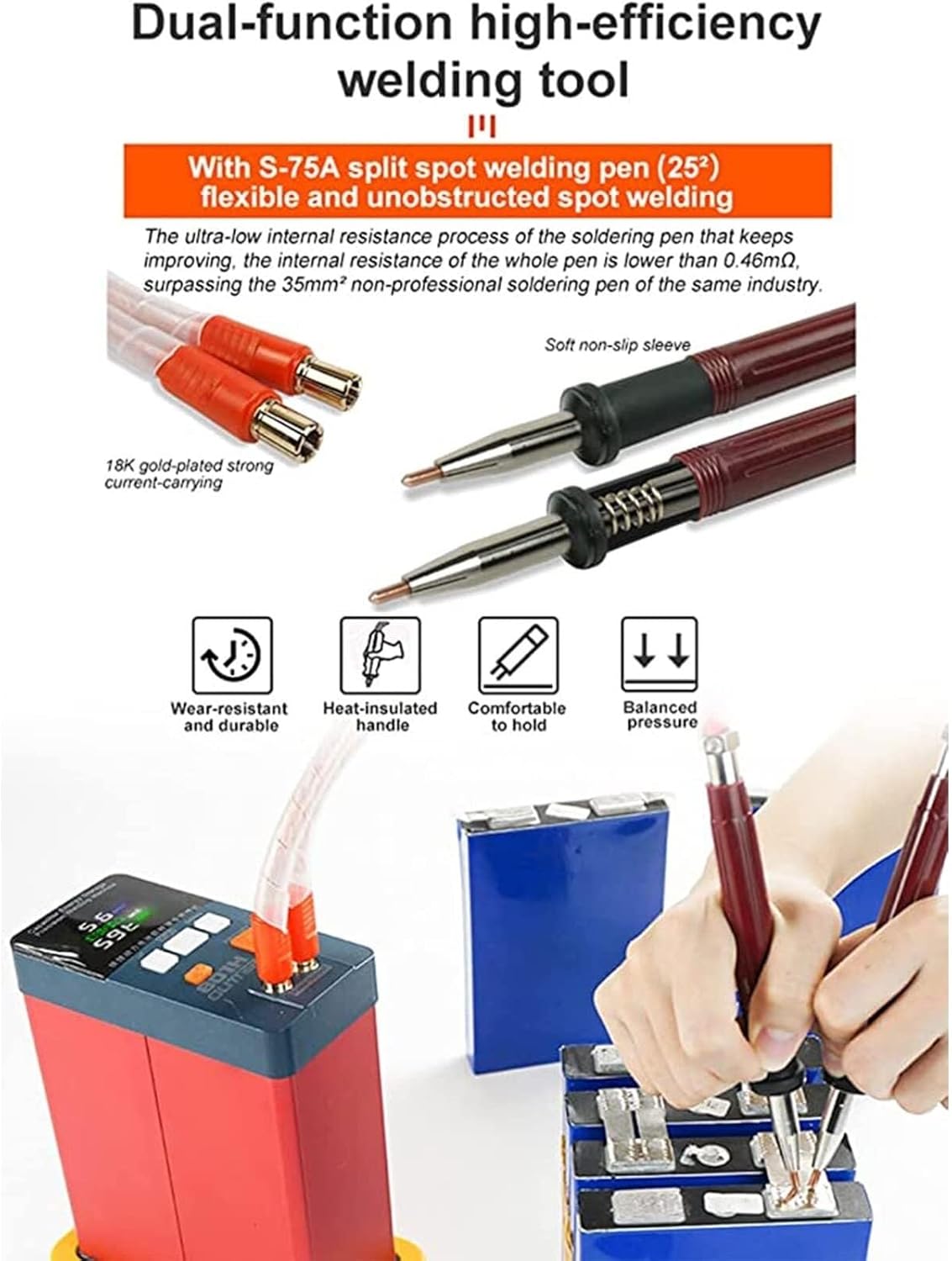

• Two Spot Welding Modes：Detachable toggle to press down the welding tool 73SA to press down the spot welding head and portable mobile 75A split spot welding pen (25²), one button to switch between two welding modes, automatic trigger and foot step control (AT /MT) to make the welding work easy and complete efficiently.
• Portable welding machine：Small size, light weight, easy to carry, while still using a wide voltage input of 110V-240V, can be used anywhere. It is smaller and lighter than traditional large heavy duty spot welders, yet more powerful and reliable.

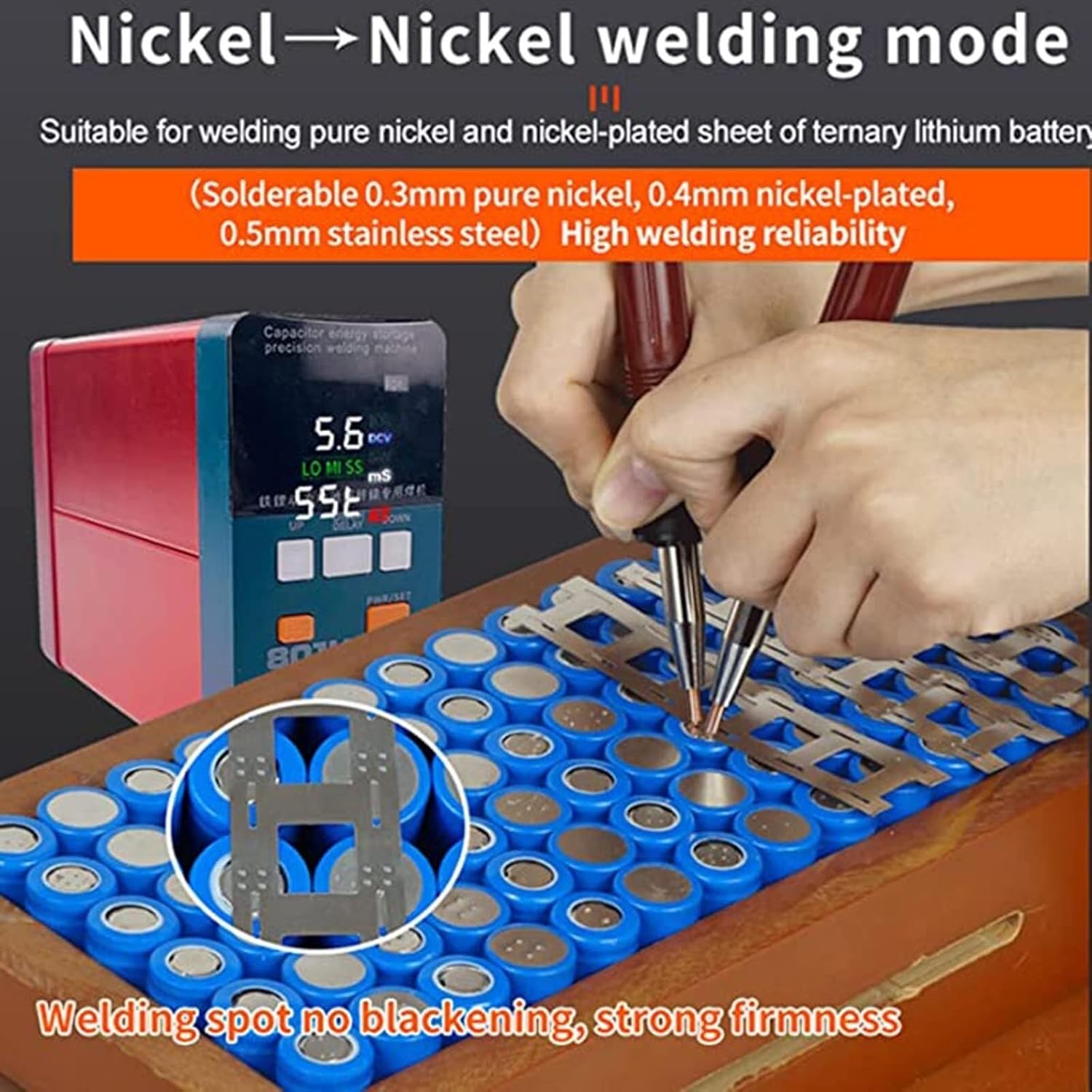

• Double pulse dual mode function：Ni-Aluminum special mode/Nickel→Nickel special mode, which can weld 0.2-0.5mm nickel-plated and nickel-plated stainless steel. Two pulses are emitted during welding, one pulse to clean the oxide layer on the surface of the weld and the other pulse to weld, to ensure the consistency of the energy output and effectively improve the welding reliability.
• Wide range of applications：Suitable for welding various battery packs, such as batteries, metal parts, electronic components, etc. Low-power technology allows you to use the machine for 12 hours without heating problems. The temperature of the spot welding pen is around 30°C, which allows it to work for a long time without heating problems.
