C.K JOK62000 JOKARI Cable Processing Set "Quadro" Multi-Coloured

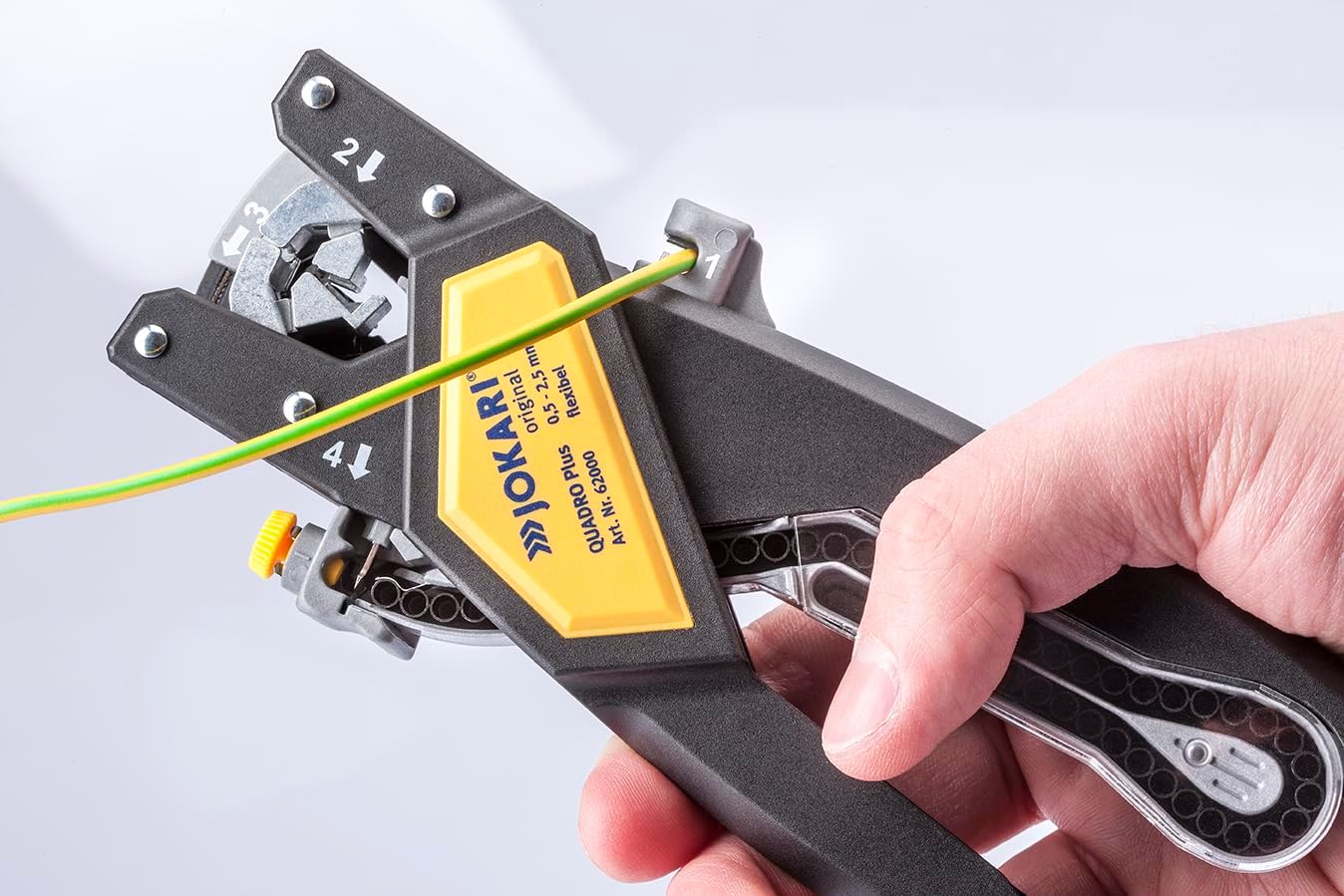

Jokari Quadro Plus Cable Processing Kit Example integration of four functions in one wire stripper and crimping plier. The perfect synthesis of ergonomics and functionality. Forced lock triggers when the crimping stamp has reached the end position. A high gear ratio allows a very easy crimping of the ferrules. Precise length stop for even stripping. Twisted system prevents splicing of the strands and thus ensures safe insertion of the conductor into the ferrule. Magazine change in seconds. Great cost and time savings when wiring electrical cabinets. Integrated forced lock to ensure an even and high-quality crimping. Four functions for fast and precise working: cutting - stripping - twisting - crimping A quick reload of the tape in just a few seconds by simply changing magazines ensures efficient work. Adjustment to the conductor cross section is not required. Integrated side cutter for wires up to max. 2.5 mm². Crimping of ferrules in tape from 0.5 to 2.5 mm² (AWG 20 - 14) according to VDE 0609 part 1. Suitable for stranded PVC insulation Applications in the electrical industry, electrotechnical service, panel construction. Technical details: Length: 259 mm. Max. Conductor cross section: 2.5 mm². Min. Conductor cross section 0.5 mm². Box contents: 1 x Jokari Quadro Plus. 240 wire end ferrules: 50 pieces each: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm² 40 pieces: 2.5 mm², 3 pieces ferrule magazines

• Offers 4 functions: cutting, insulation stripping, twisting and crimping
• For wires with insulation made of PVC from 0.5 to 2.5mm² (AWG 20-14)
• Includes: 3 x Magazines and 5 x End Sleeve Strips 0.5, 0.75,1.0,1.5 and 2.5mm²
• Supplied in a durable plastic storage box with foam inlays
