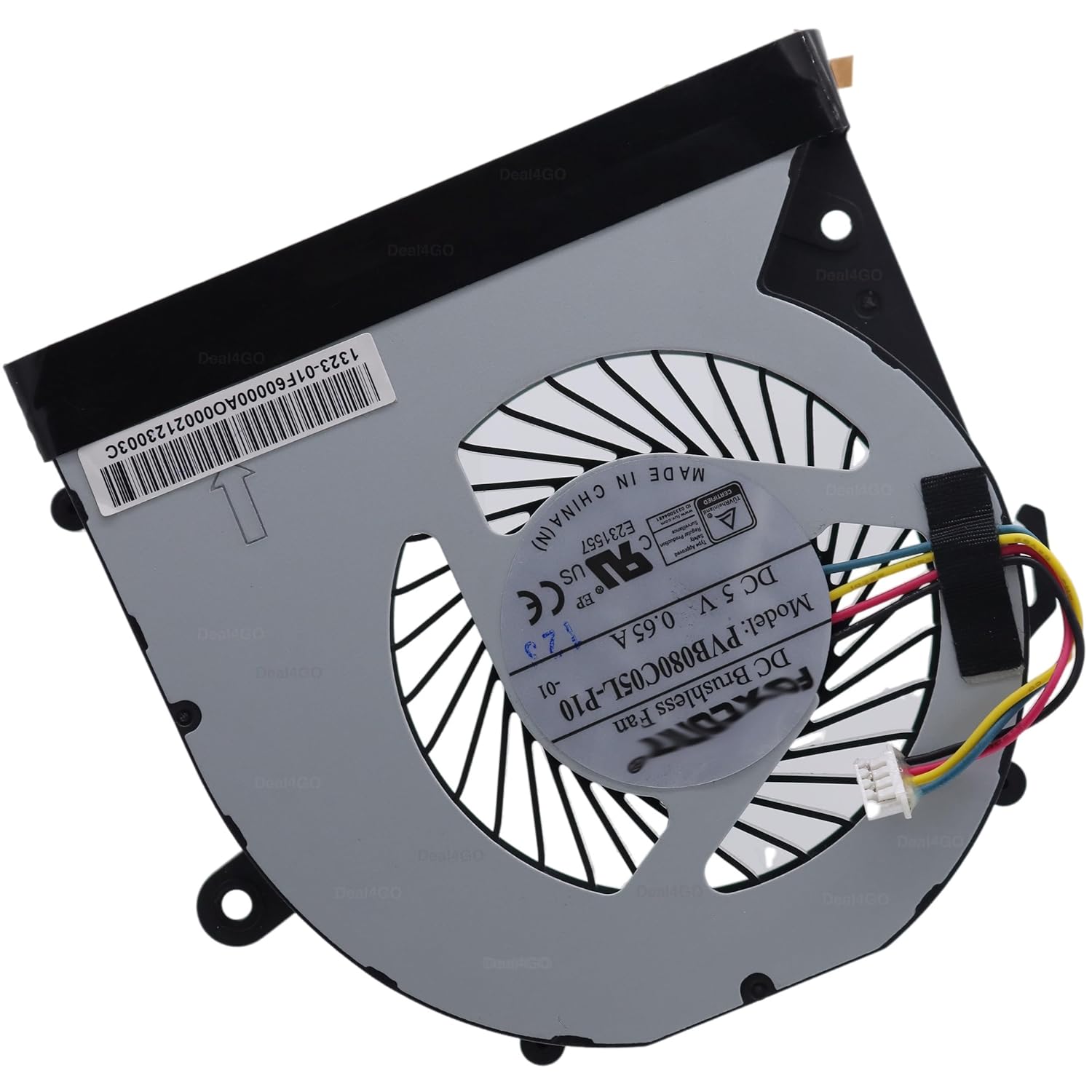

Deal4GO CPU Cooling Fan PVB080C05L P10 Replacement for Intel NUC 11 Pro Tiger Canyon NUC 12 NUC 13 NUC12WSHi7 NUC13ANHi5 NUC11TNHi7, Silver
Product details
| Management number | 218154986 | Release Date | 2026/05/03 | List Price | $8.40 | Model Number | 218154986 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
BRAND NEW and GENUINE OEM Cooling Fan for NUC 11 Pro, NUC 12 Pro, NUC 13 Pro mini PC series, this is the cooling fan for CPU processor, attaches to your existing heatsink. CAUTION: There are different type (PAH, PAK, TNK, TNB, TNH) of Fan, NOT FIT for NUC 11 Panther Canyon NUC11PAH NUC11PAK series. The fan uses an integrated flex cable to connect to the motherboard, the cable connects via 4-pin connector making it a plug and play replacement module. Compatible Part Number(s): PVB080C05L P10, BAZC0810R5HY006, BAZC0810R5HY010, 1323-01F6000 0A Specifications: Color: Silver Power Connection: 4-pins 4-wire, Plug-in Connector overall Length approx: 3.00 cm/1.10-inches Direct Current: 5V Ampere: 0.65A Life Time of the fan: 100000 HRs Fan Speed Control: 3500 RPM(Auto) Reference list of compatible with Mini PC models: - NUC 11 Pro NUC11TNH series: NUC11TNHi7, NUC11TNHi5, NUC11TNHi3, NUC11TNHv7, NUC11TNHv5, NUC11TNHc5 - NUC 11 Pro NUC11TNK series: NUC11TNKi7, NUC11TNKi5, NUC11TNKi3, NUC11TNKv7, NUC11TNKv5 - NUC 11 Pro NUC11TNB series: NUC11TNBi7, NUC11TNBi5, NUC11TNBi3, NUC11TNBv7, NUC11TNBv5 - NUC 12 Pro Barebones series: NUC12WSKi3, NUC12WSKi5, NUC12WSKi7, NUC12WSHi30Z, NUC12WSHi50Z, NUC12WSHi70Z, NUC12WSHi3, NUC12WSHi5, NUC12WSHi7, NUC12WSKV5, NUC12WSKV7, NUC12WSKi30Z, NUC12WSKi50Z, NUC12WSKi70Z - NUC 13 Pro Arena Canyon series: NUC13ANKi3, NUC13ANKi5, NUC13ANKi7, NUC13ANHi3, NUC13ANHi5, NUC13ANHi7
- Compatible with Intel NUC 11 Pro Tiger Canyon, NUC 12 Pro, NUC 13 Pro mini PC series: NUC11TNH, NUC11TNK, NUC11TNB, NUC12WSK, NUC12WSH, NUC13ANH, NUC13ANK, NUC11TNHi7, NUC13ANHi5, NUC12WSHi7 ...
- ※※CAUTION※※: There are different type (PAH, PAK, TNK, TNB, TNH) of Fan, ※※NOT FIT for NUC 11 Panther Canyon NUC11PAH NUC11PAK series.※※
- Compatible Part Number(s): PVB080C05L P10, BAZC0810R5HY006, BAZC0810R5HY010, 1323-01F6000 0A
- Direct Current: DC 5V / 0.65A, 1.55W, Power Connection: 4-pin 4-wires connector, attaches to your existing heatsink.
- Each Pack come with: 1x CPU Cooling Fan (Fox conn), 1x Thermal Grease. (NOTE: The Screw NOt included, Please retain the original screw for the installation of this part.)
| UPC | 659675715322 |
|---|---|
| Model | NUC 11 Pro |
| Voltage | 5 Volts (DC) |
| Wattage | 2.5 watts |
| Brand Name | N\A |
| Unit Count | 1.0 Count |
| Item Weight | 0.06 Kilograms |
| Noise Level | 30 Decibels |
| Part Number | BAZC0810R5HY006 |
| Manufacturer | N\A |
| Material Type | Stainless Steel |
| Cooling Method | Air |
| Number of Items | 1 |
| Air Flow Capacity | 7.2 Cubic Feet Per Minute |
| Compatible Devices | NUC 11 Pro, NUC12, NUC13 |
| Included Components | 1x CPU Cooling Fan (Fox conn), 1x Thermal Grease |
| Power Connector Type | 4-Pin |
| Maximum Rotational Speed | 4500 RPM |
| Item Dimensions L x W x H | 3.5"L x 3.5"W x 0.7"H |
