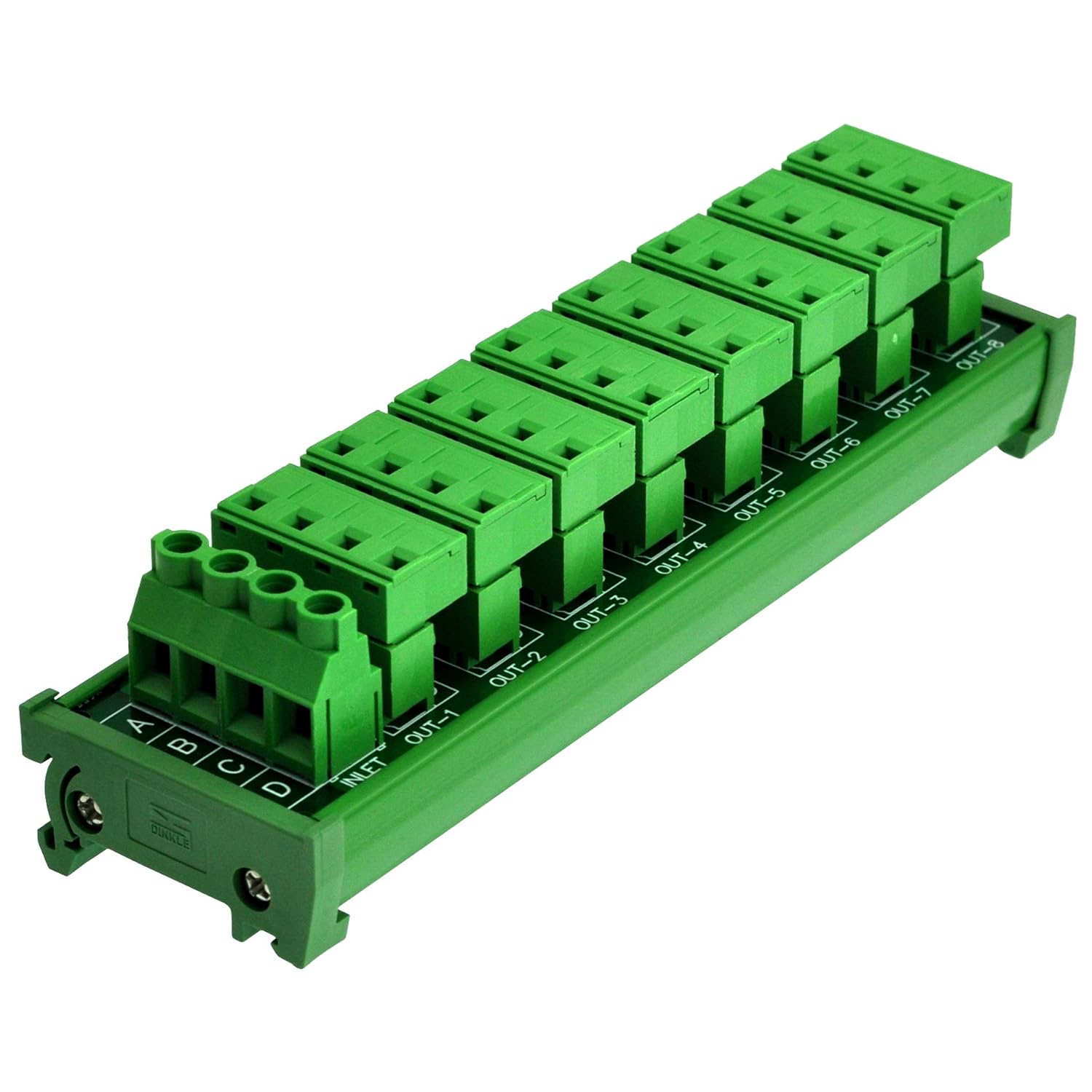

DIN Rail Mount 30A/300V 8x4 Position Pluggable Terminal Block Distribution Module
Product details
| Management number | 218152423 | Release Date | 2026/05/03 | List Price | $10.00 | Model Number | 218152423 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, DIN rail mount 30Amp 300V 8x4 position screw terminal block distribution module. 2, Terminal block INLET A / B / C / D positions, maximum current 30Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. 3, Terminal blocks OUT-1 to OUT-8 A / B / C / D positions, pluggable screw terminal blocks, maximum current 20Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 28AWG ~ 12AWG / 2.5mm square. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. 4, High quality Taiwan fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
- DIN rail mount 30Amp 300V 8x4 position screw terminal block distribution module.
- Terminal block INLET A / B / C / D positions, maximum current 30Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- Terminal blocks OUT-1 to OUT-8 A / B / C / D positions, pluggable screw terminal blocks, maximum current 20Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 28AWG ~ 12AWG / 2.5mm square. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- High quality Taiwan fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
| Color | Green |
|---|---|
| Gauge | 28.0 |
| Model | MD-D1343T-1 |
| Pitch | 7.62 Millimeters |
| Voltage | 300 Volts |
| Brand Name | OONO |
| Item Weight | 0.1 Kilograms |
| Part Number | MD-D1343T-1 |
| Manufacturer | CZH-LABS |
| Material Type | Brass |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 20 Amps |
| Number Of Poles | 16 |
| Specification Met | Din |
| Number Of Contacts | 32 |
| Number of Positions | 16 |
