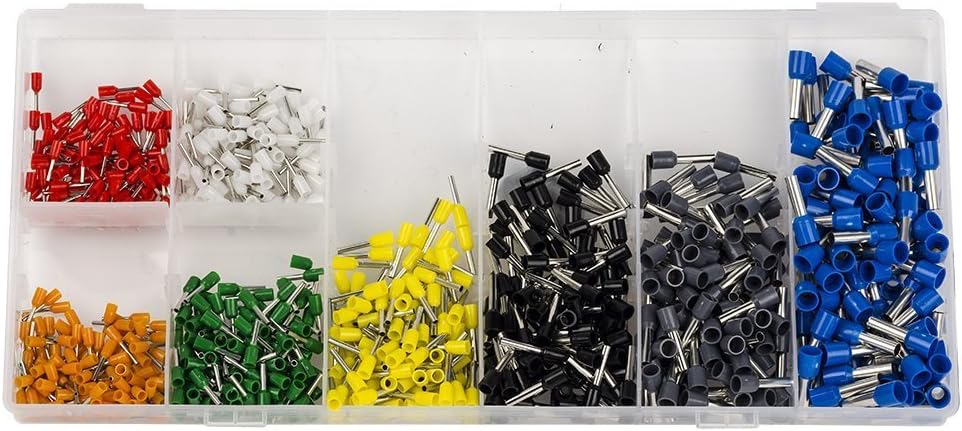

Eagles Wire Ferrules Kits 800Pcs Pin Terminals, Insulated Cord End Terminal Bootlace Cooper Ferrules 22-10AWG Kit

Eagles 800 Pcs Wire Ferrule Connectors Kit, AWG 22-10 Wire Ferrules Terminals Connectors Kit, Copper Nylon Insulated Cord Pin Ends Crimp Ferrules Connectors Terminals for Electric, Industrial 1.Electrical Wire End Crimps Terminales Feature: (1)Fast lifting safety lock. (2)The handle is ergonomically designed. (3)Strengthen the grip, with spring return. (4)The unique design of the four spindle crimp style. (5)The adjustable ratchet wheel structure and the lever action reduces the fatigue degree of the operation. 2.Specification: (1)AWG 10 (Green) : F : 12mm L : 20.5mm W : 6mm D : 3.9mm C : 3.4mm (2)AWG 12 (Gray) : F : 12mm L : 19.5mm W : 4.4mmD : 3.2mmC : 2.8mm (3)AWG 14 (Blue) : F : 12mm L : 19.2mmW : 4mm D : 2.6mm C : 2.3mm (4)AWG 16 (Black) : F : 10mm L : 16.4mm W : 3.5mm D : 2mm C : 1.7mm (5)AWG 18 (Red) : F : 8mm L : 14.6mm W : 3mm D : 1.7mm C : 1.4mm (6)AWG 20 (White) : F : 8mm L : 14.6mmW : 2.8mmD : 1.5mmC : 1.2mm (7)AWG 22 (yellow) : F : 6mm L : 12mm W : 2.5mm D : 1.3mmC : 1mm (8)AWG 22 (Orange) : F : 8mm L : 14mmW : 2.5mm D : 1.3mm C : 1mm 3.Package Includes: (1)100pcs x E0506 (2)100pcs x E0508 (3)100pcs x E7508 (4)100pcs x E1008 (5)100pcs x E1510 (6)100pcs x E2512 (7)100pcs x E4012 (8)100pcs x E6012

• 1. Package Includes: 800PCS assortment pin terminals,Wire Range: 22-10 A.W.G, 0.3-6.0mm²
• 2. Wire Terminal Connectors Material: the pin of the Insulated ferrule wire terminals connectors made of Copper with conductive better,Insulation shell made of PVC.
• 3. Amp Wire Connectors Type: Cord Pin End Terminal,allow visual inspection, revents corrosion, and provided a waterproof seal
• 4. Wire end ferrules can be ideal used in marine and automobile applications,comes with all you need to make electrical repairs around the home or shop.
• 5. For best results use a hot air gun until it reduces in size and the adhesive flows, filling gaps within the terminal
