GOOVER Dimmable LED Driver,12V 100W UL Listed Power Supply,CCT & 5-in-1 Dimming: ELV/MLV/TRIAC /0-10V/1-10V/10V PWM/Potentiometer,Compatible with Lutron and Leviton Dimmer for LED Lights
Product details
| Management number | 208391985 | Release Date | 2026/03/22 | List Price | $38.40 | Model Number | 208391985 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 5-IN-1 DIMMING FUNCTION: 5-in-1 Forward and Reverse Phase Dimming: ELV, MLV, TRIAC, 0-10V, 1-10V, 10V PWM and Potentiometer. The dimmable LED driver is perfectly compatible with most dimmer switches, achieving 0-100% smooth dimming, and also works well with control switch systems and sensors

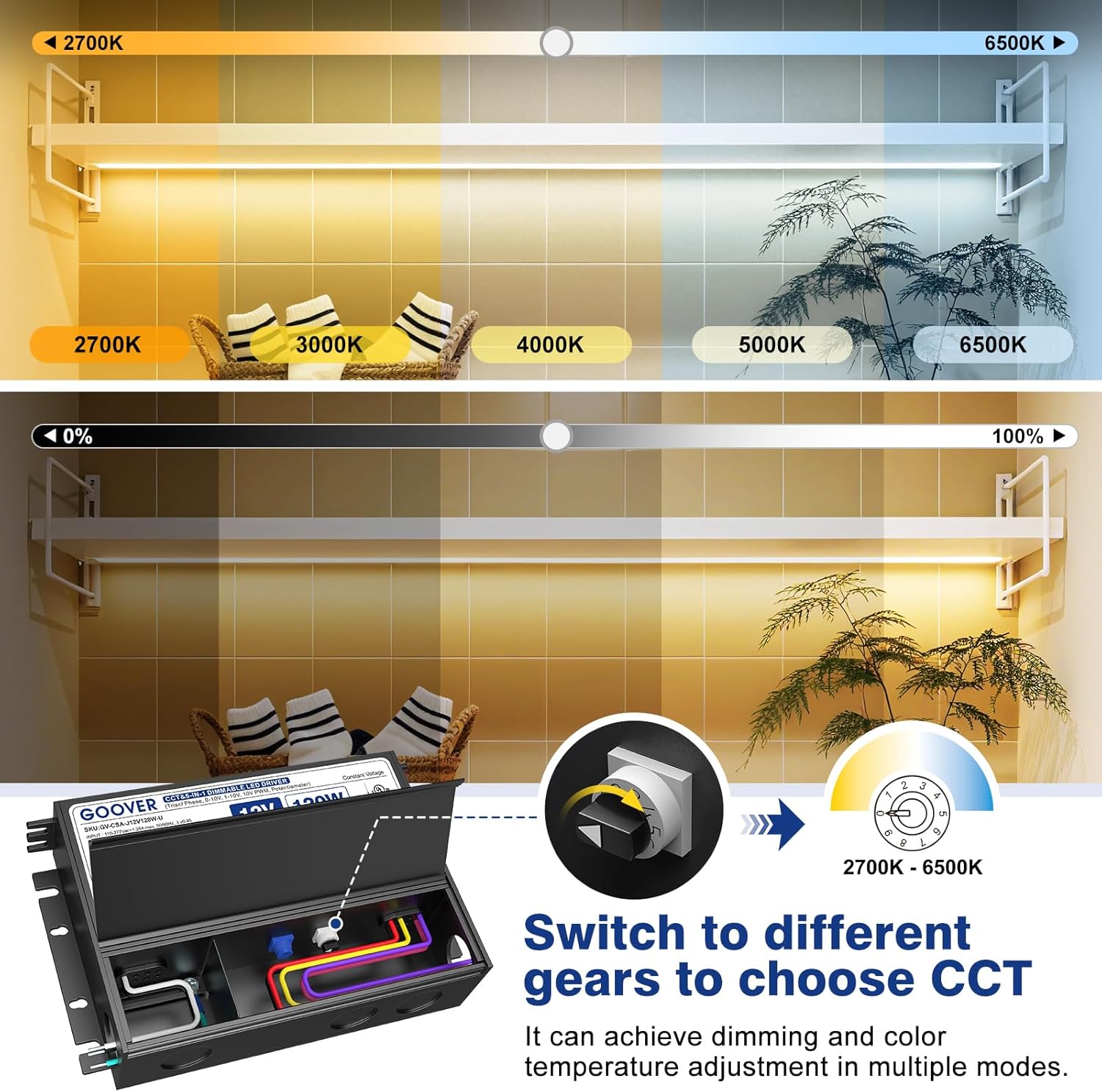

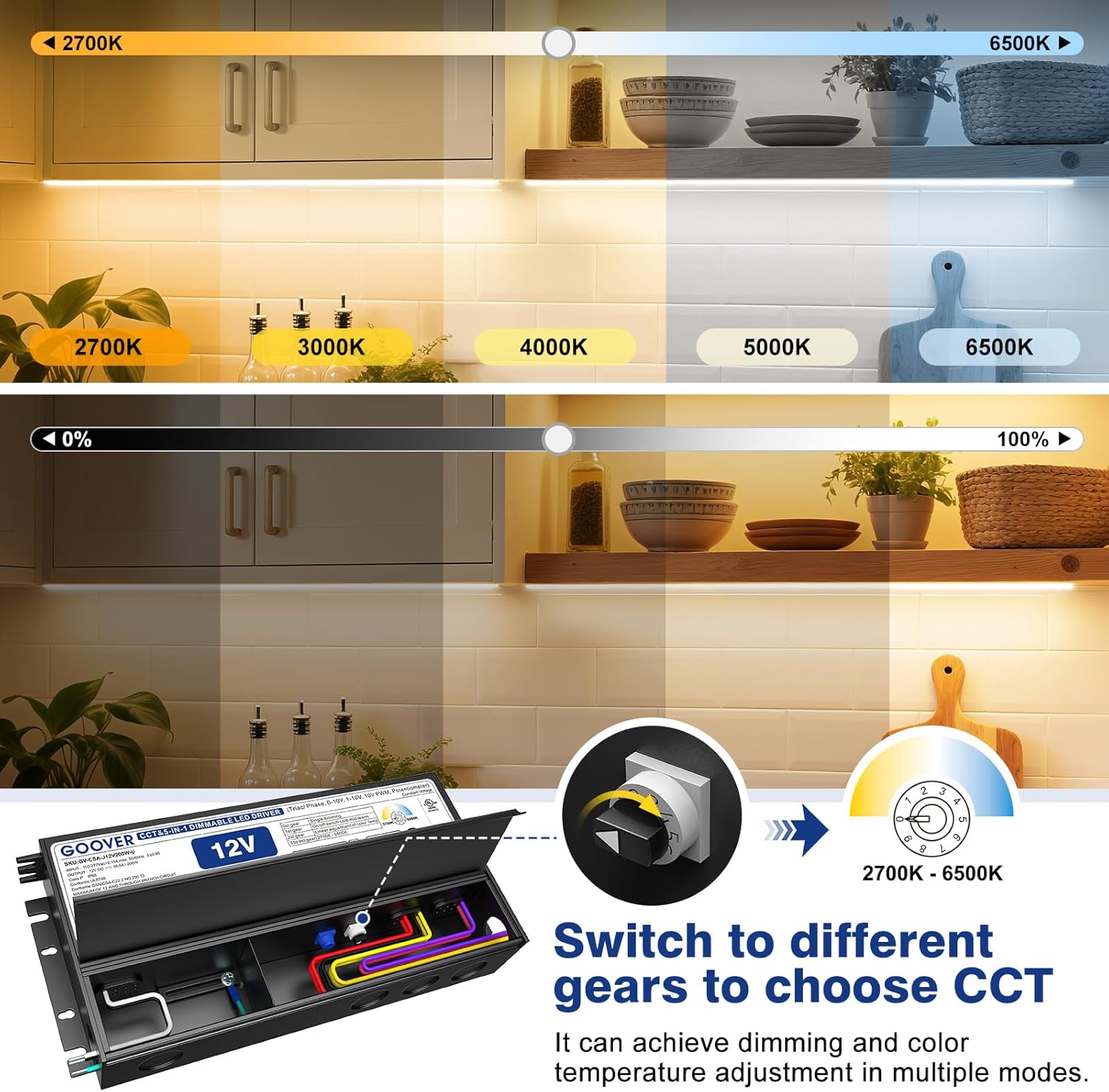

- CCT SWITCHABLE & CCT LINEAR ADJUSTABLE: The knob enables multi - gear switching of working modes. Among them, gear 0 is just dimming(for single channel LED Strip). Gear 1 is switch on/off AC switch to select the color temperature. Gear 2 is linear adjustment of color temperature. From gear 3 to gear 9, a certain color temperature (ranging from 2700K to 6500K) can be selected

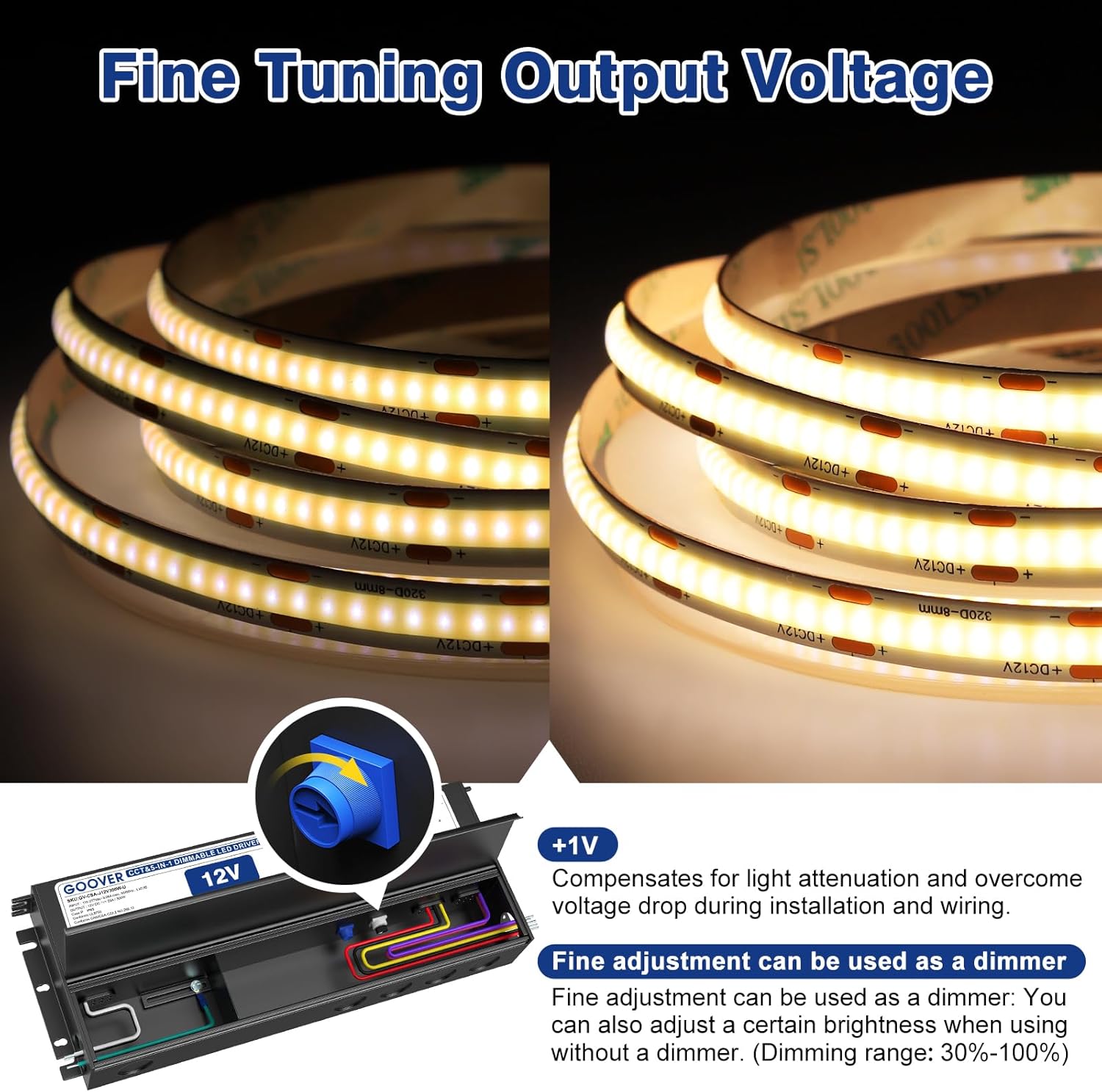

- FINE TUNING OUTPUT VOLTAGE: It is equipped with a fine-tuning voltage function knob. +1V: performs light attenuation compensation and simultaneously resolves the voltage drop issue during installation and wiring. Fine-tuning can be used as a dimmer: You can adjust the brightness to a certain level even when the dimmer is not connected

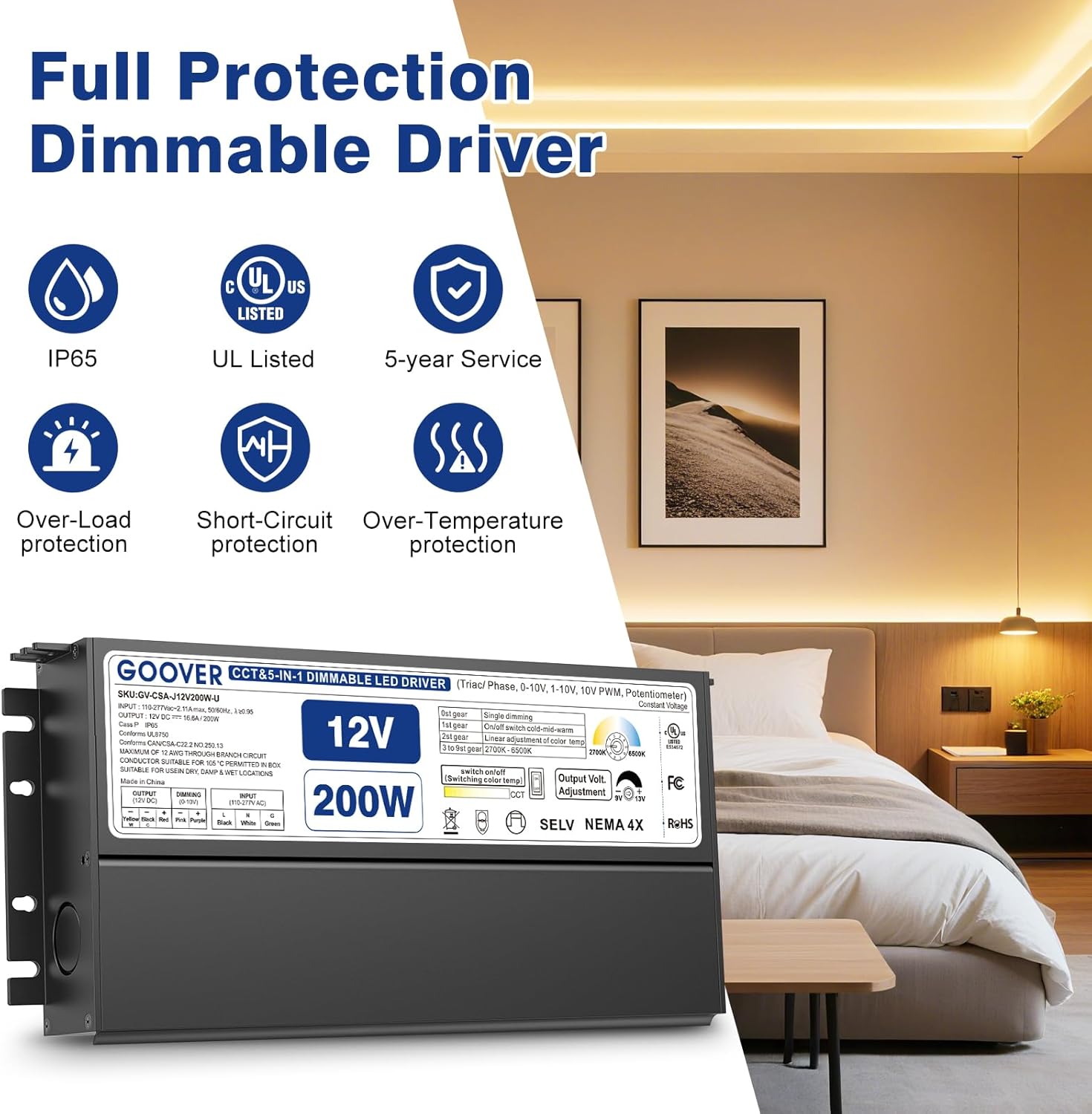

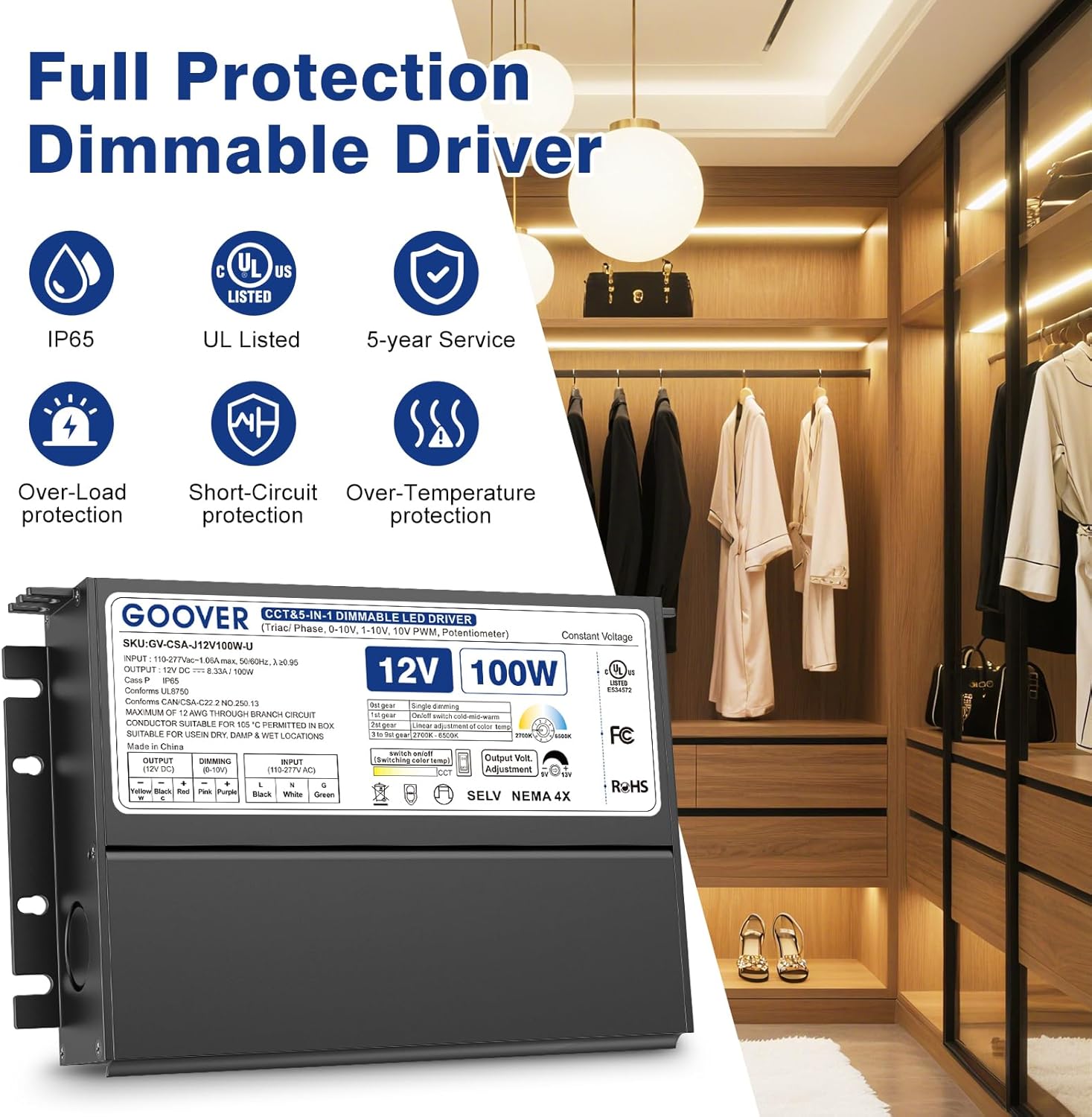

- SPECIFICATIONS: Constant Voltage type, fine tune of output voltage; PF>0.95, dimming range: 0.1-100%, flicker-free; Output type: PWM, 4000Hz constant frequency(Different frequencies can be customized: 250-20000Hz); UL Listed RoHS, SELV. FCC compliant, waterproof IP65 for wet or dry use. Standard built-in protections include short-circuit, over-temperature, over-load protection

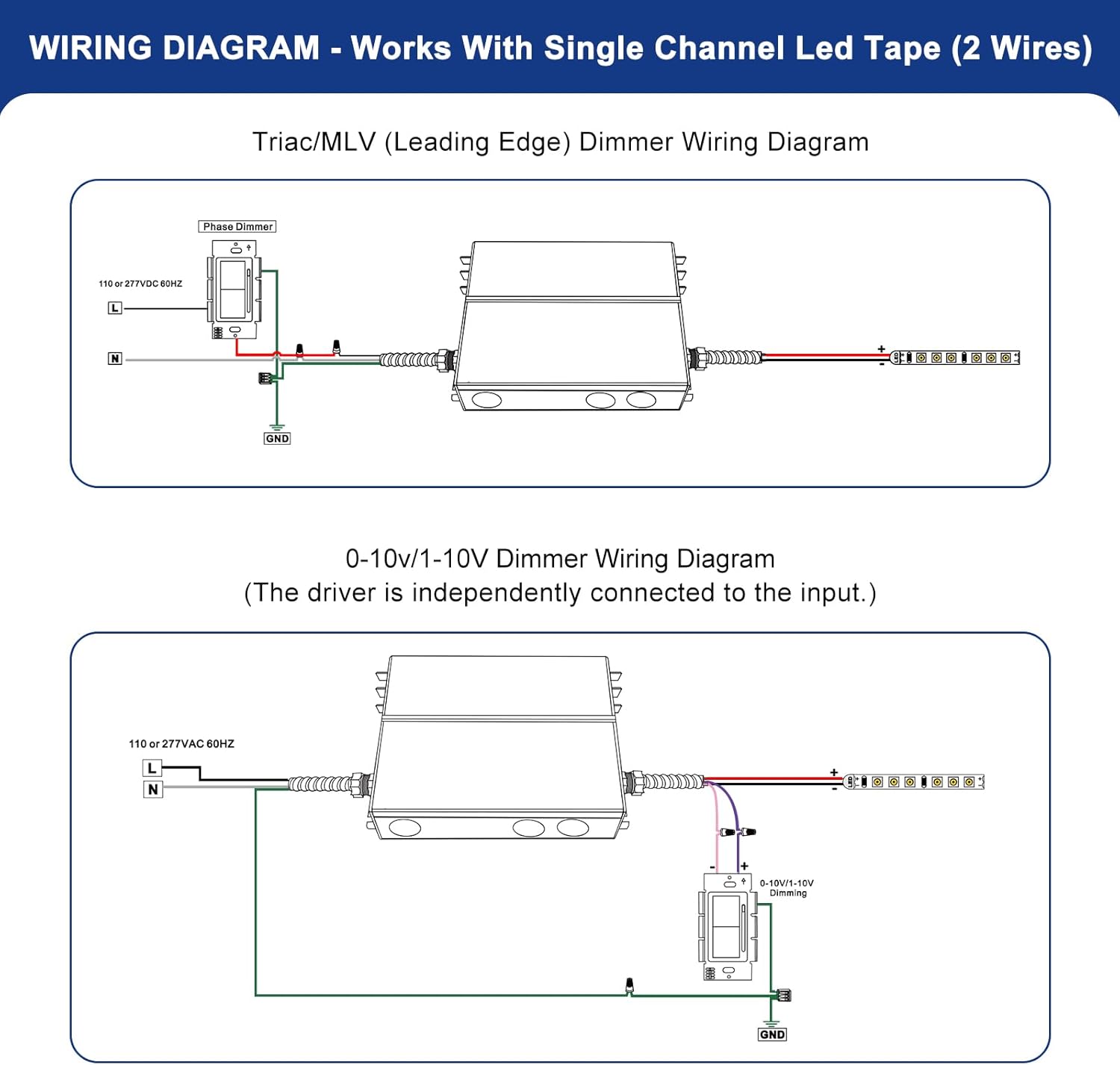

- EASY INSTALLATION: When installing, open the junction box and connect the wires corresponding to the driver. Installation: Flat mounting, side mounting, vertical mounting. Please refer to our instructions for specific operation
- Our products are very strong and durable, and have 5 years of after-sales service. If you have any questions, our customer service team is here to help
| UPC | 850071561036 |
|---|---|
| Item Weight | 2.09 pounds |
| Manufacturer | GOOVER |
| Item model number | CSA-J |
| Specification Met | FCC, RoHS, UL |
| Product Dimensions | 7.4 x 1.65 x 4.85 inches |
