Hydro Master Copper Tubing Ice Maker and Humidifier Installation Kit 1/4 Inch x 15 ft LF

Thanks for choosing Hydro Master! Kit includes: 1 copper tubing+1 self-piercing tap valve and clamp+2 compression unions +2 plastic sleeves+1 brass sleeve+1 compression nut+2 brass inserts Size: 1/4" x 15' Material: copper Weight: 1.27lbs (579g) INSTALLATION 1.Choose convenient cold water supply line 2.Install saddle valve, following those instructions carefully. 1/4" hole must be drilled if installing onto steel pipe 3.Connect copper tubing to saddle valve using brass sleeve 4.Connect tubing to the refrigerator using either the 1/4" tube x 1/8" male pipe straight adapter, or the 1/4" tube x 1/8" male pipe elbow 5.Turn on water supply at saddle valve slowly, and check all connections for leaks before replacing refrigerator in its original place NOTE: WHEN INSTALLING TUBING, BE SURE THAT TUBING IS INSERTED IN FITTING AS FAR AS IT CAN GO.

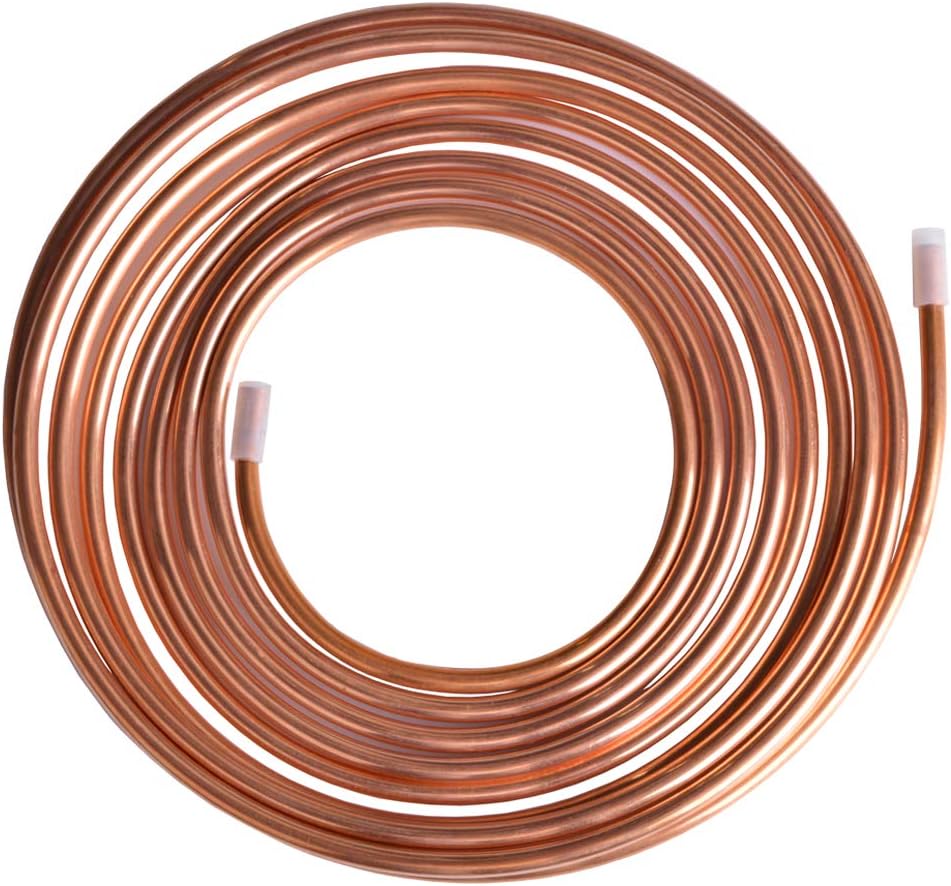

• 1/4 In x 15ft (6.35mm x 4.57m) copper tubing, long enough to meet most installation, and can be cut to length for your request
• Made from lead free copper and brass, heavy duty and long lasting

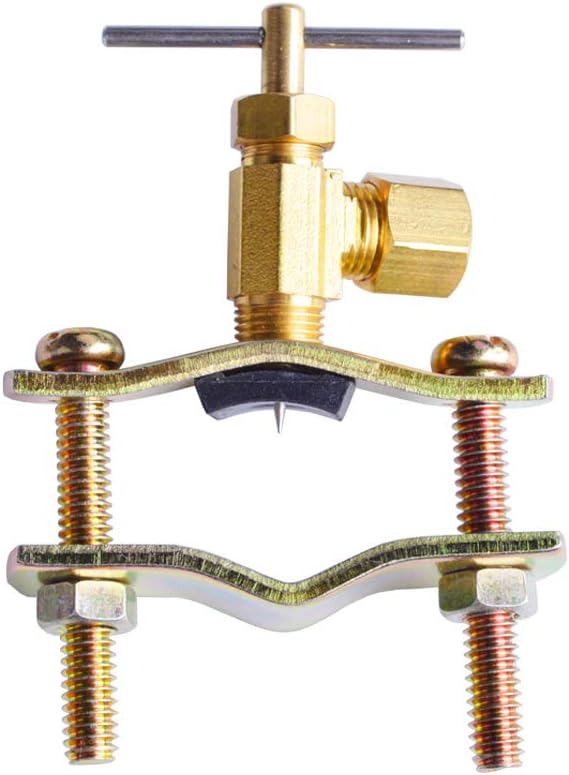

• Hydro Master ice maker/humidifier installation kit includes copper tubing, self-piercing tap valve, clamp and other hardwares
• The hookup kit comes with whole kit, easy and flexible installation, no extra accessories needed
• Universal use, adapts to most ice makers and humidifiers
