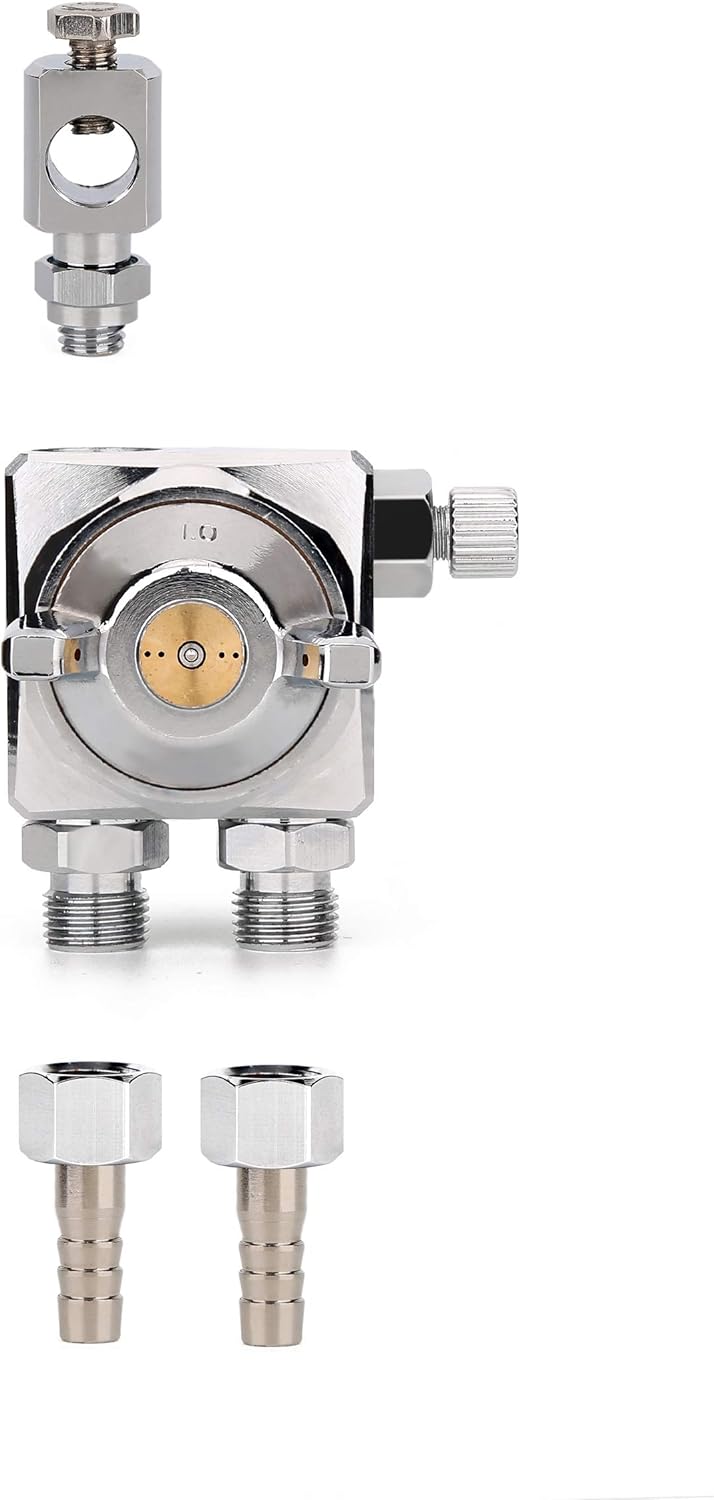

Ouya ST-5 Pneumatic Pressure Feed Automatic Spray Gun Nozzle Size:1.3mm for Automated Production Line Paint Spraying Medical Spraying Heavy Duty Paint Sprayer Set

Ouya pneumatic auto spray gun internal material is brass, which is corrosion-resistant, external material is stainless steel, which is wear resistant, our spray set have high versatility in all walks of life, and easy to operation, even you are a rookie. Specific: Nozzle size available: 0.5mm/1.0mm/1.3mm/2.0mm Liquid flow: 0-360ml/min: Maximum spray width: 350mm Air consumption: 100L/min: Weight: 210g Size: 10.2x6.2x4.5mm Package includes: 1x spray gun 1x screw 1x English owner manual

• This spray set is pressure feed,which mean you would need to equip them with diaphragm pump and air compressor,Please refer to the connection diagram for installing.
• Commonly used pressure range:0.3~0.4Mpa,When the air pressure less 0.2Mpa, the gun piston will stop to prevent liquid from ejecting.
• Liquid flow:0-360ml/min;Maximum spray width:350mm;Air consumption:100I/min,Easy to install, especially suitable for sealing or narrow spaces.
• Ignore the concentration of the spray medium, as long as the air pressure and flow are controlled, the perfect result can be achieved.like water;oil;paint;lubricating oil or Solvent.
• Widely used in: machinery, electronics, printing, food, medicine, automotive, building materials, demoulding, etc.
