Phanteks PH-F120D30_DRGB_PWM_BK01_3P, Black
Product details
| Management number | 208559908 | Release Date | 2026/03/22 | List Price | $45.40 | Model Number | 208559908 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds. The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system. Type:Case Fan. Wind Direction:Regular. Color:White Matte blade/Black Fan Frame. Materials:PBT (Polybutylene terephthalate). Fan Size:120 x 120 x 30 mm. Bearing Type:FDB (Fluid Dynamic Bearing). Blade Geometry:Seven Blades Design- White Matte. Rated Voltage:FAN: 12V LED: 5V. Operating Voltage Range:5~13.2V. PWM:Yes. Rated Current (Ampere):0.15A LED:0.45A(Max). Locked Current:Polarity Protection. Power Consumption: less or equal 1.8W. Speed:250-2000 plus-minus 10% RPM. Max. Airflow:64.3 CFM. Max. Air Pressure:3.01 mm H2O. Noise Level:30.2 dB(A). Fan Connector:4-Pin PWN. Fan Cable Length:700 mm / 27.56 in. D-RGB Connector:3-Pin JST Daisy-chain. D-RGB Cable Length:600+100 mm / 23.62+3.94 in. LED Number:32 (D-RGB). LED Rated Voltage DC:5V (+5V/D/GND). LED Rated Current Max:0.45A. MTBF (Life Expectance):50,000hrs at 40 degree Celsius.

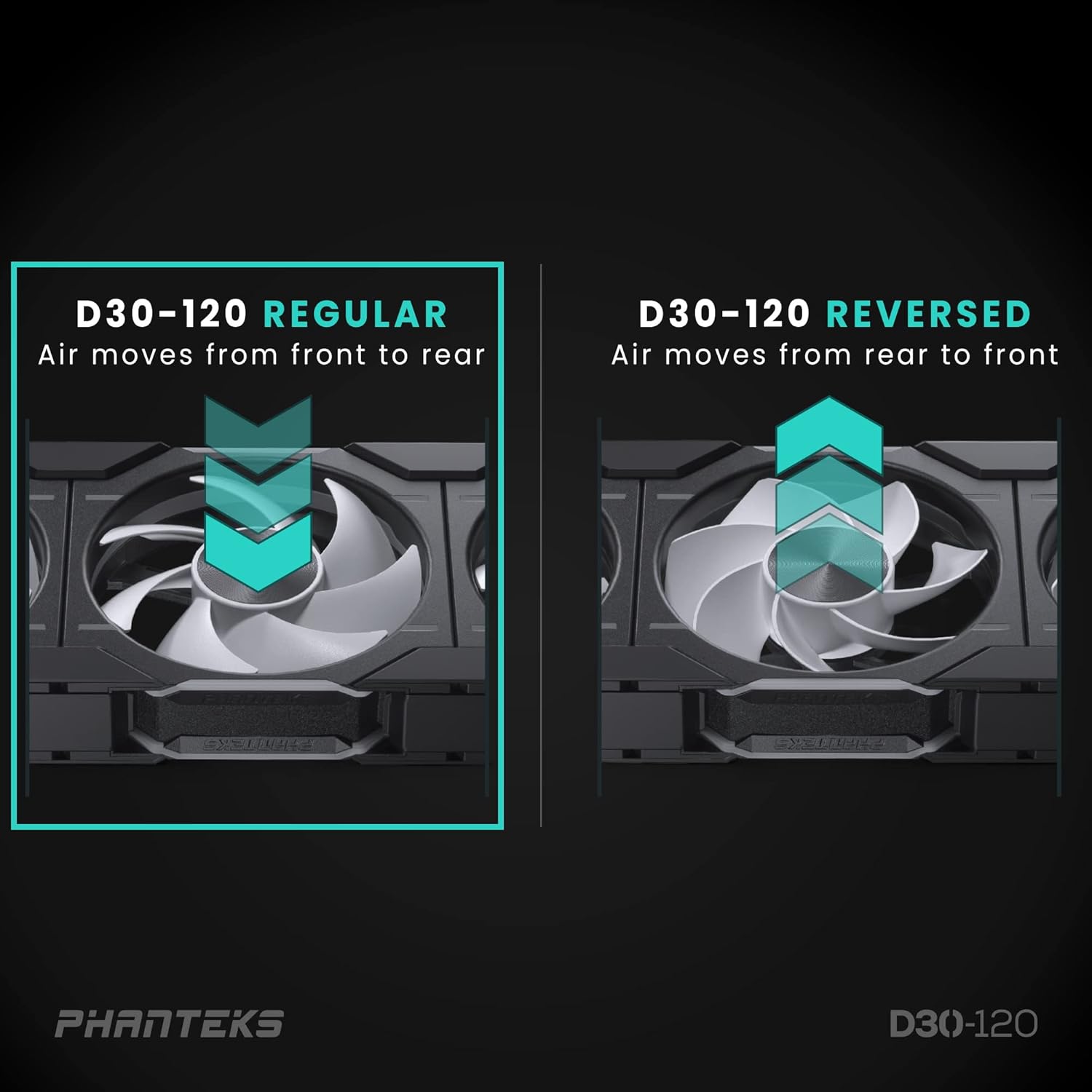

- Regular & Reverse airflow models available: With regular and reverse airflow models available, the D30 fan allows for the perfect configuration without obstructing the fan blade lighting effect.

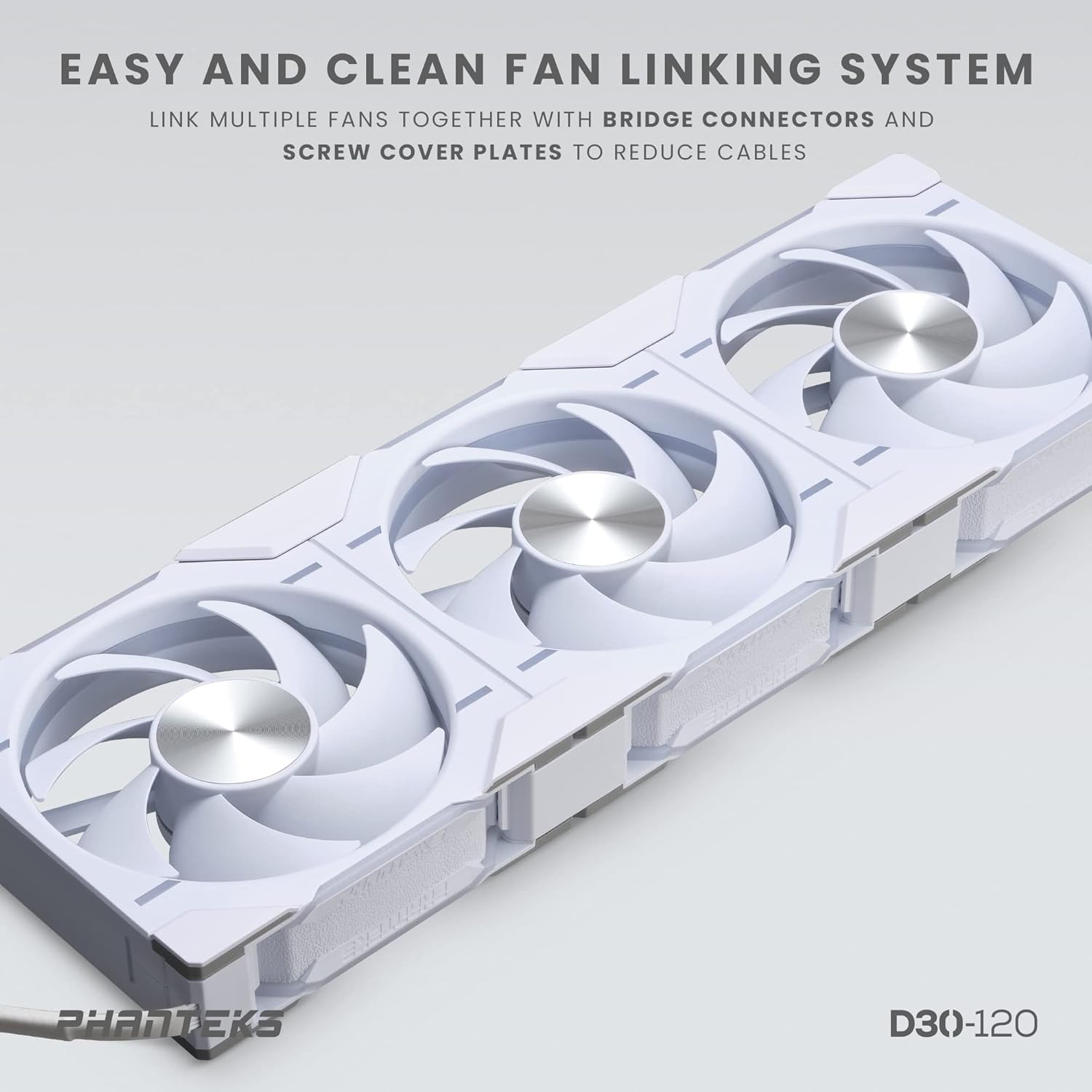

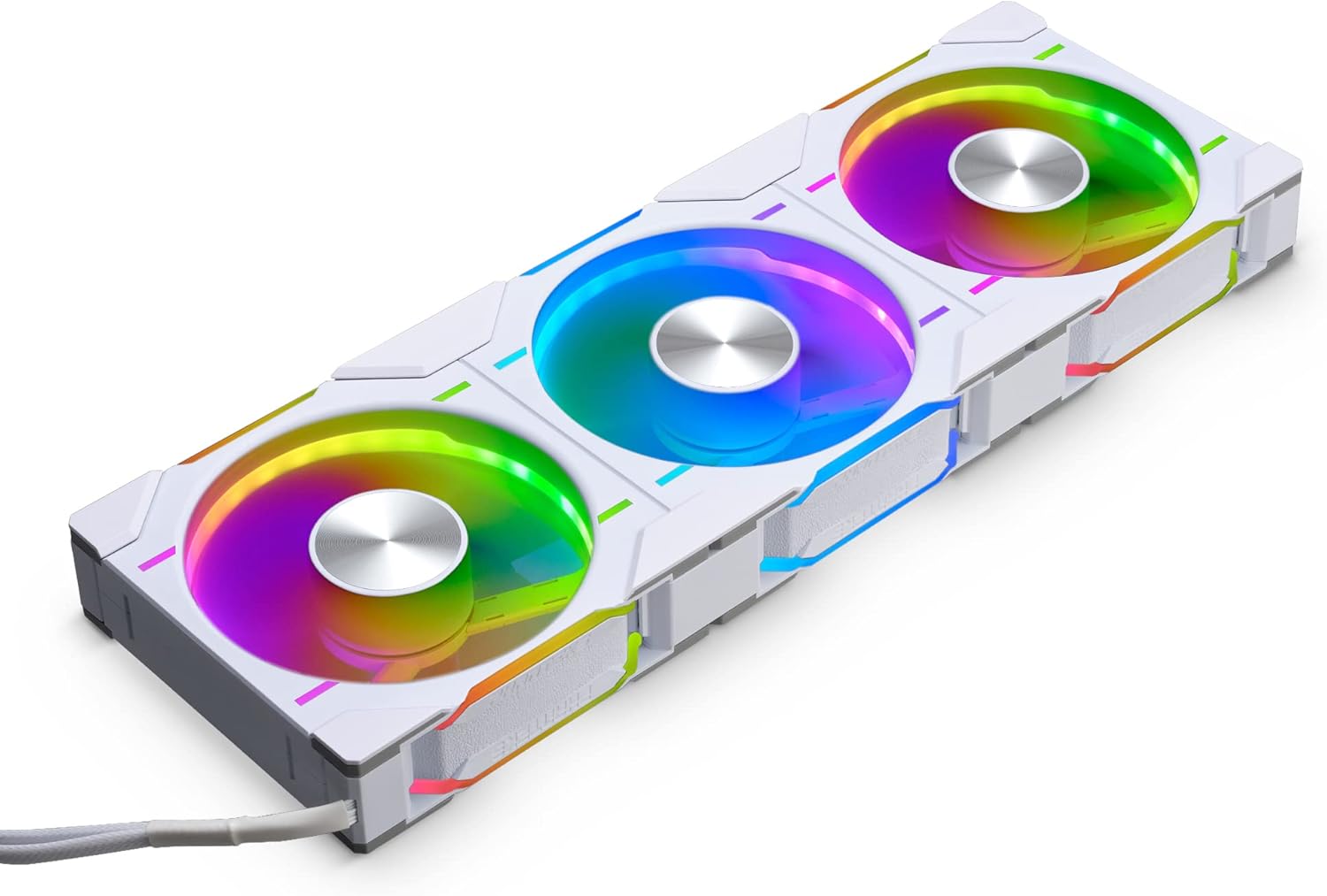

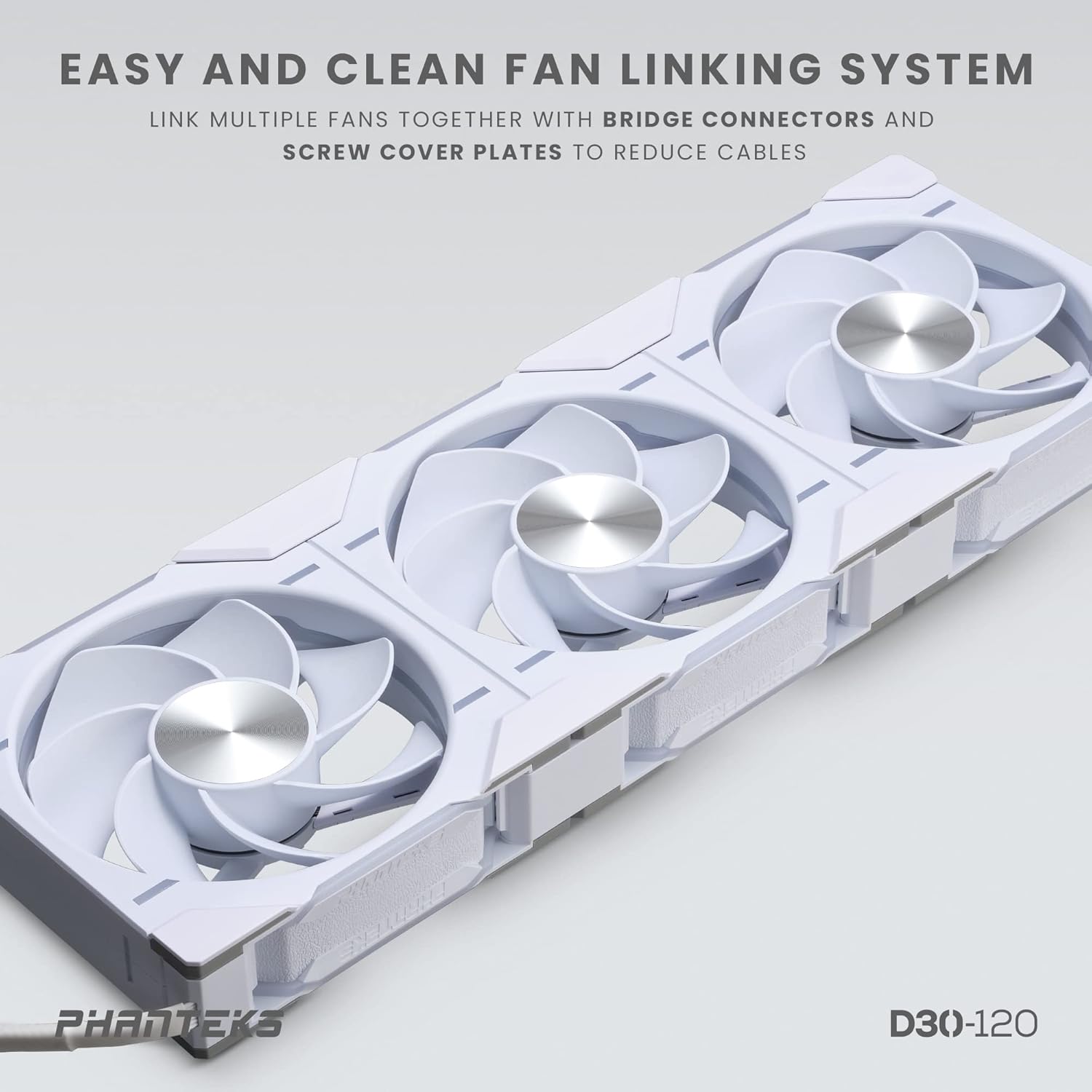

- Easy and clean fan linking system: Linking multiple fans together reduces cable clutter considerably while the screw cover plates, and bridge connectors make multiple D30 fans work as one clean unit.

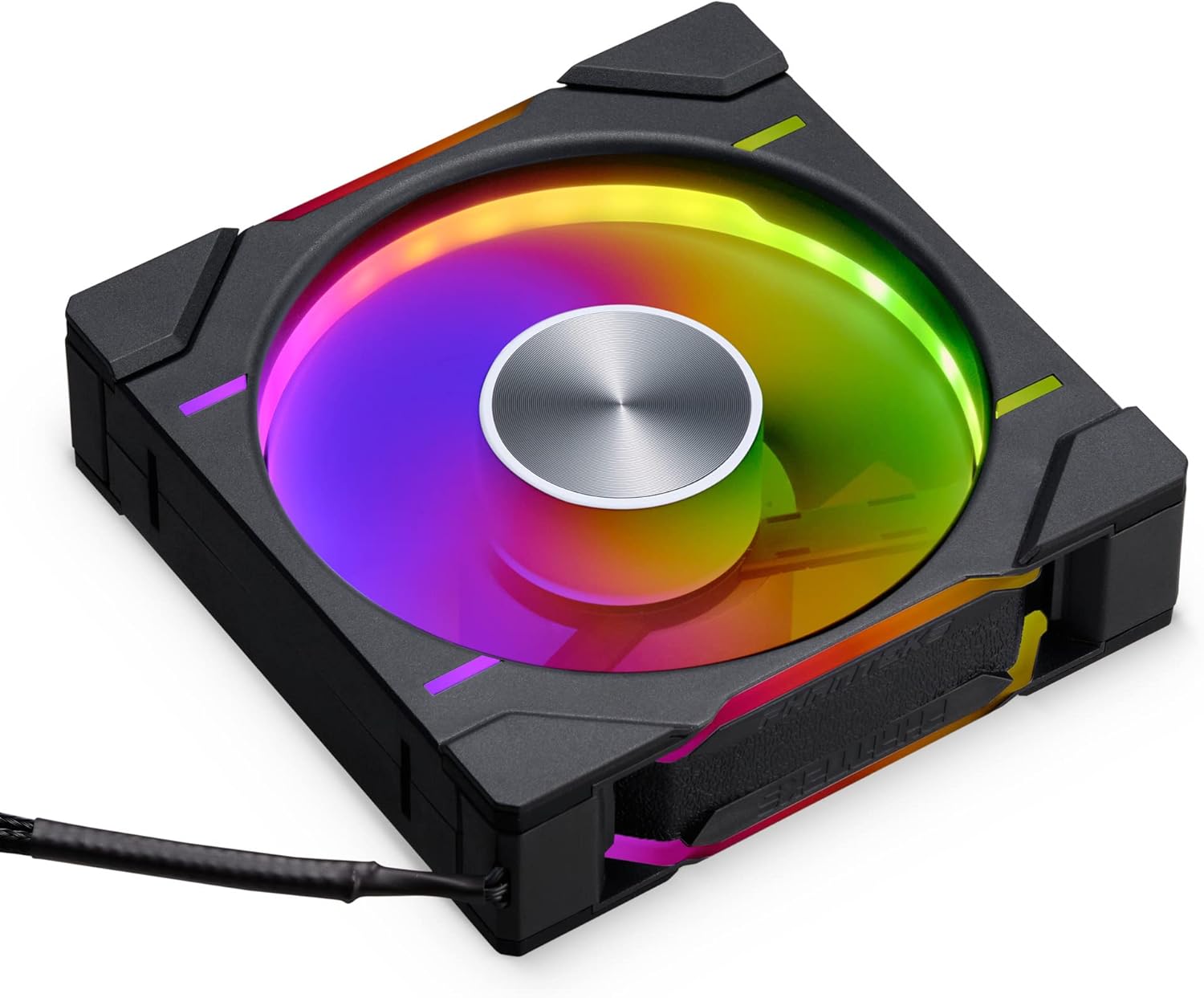

- The D-RGB lighting is integrated and visible from all sides of the D30-120 fan. The blades reflect the light coming from the Halos lighting ring inside the frame. Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.

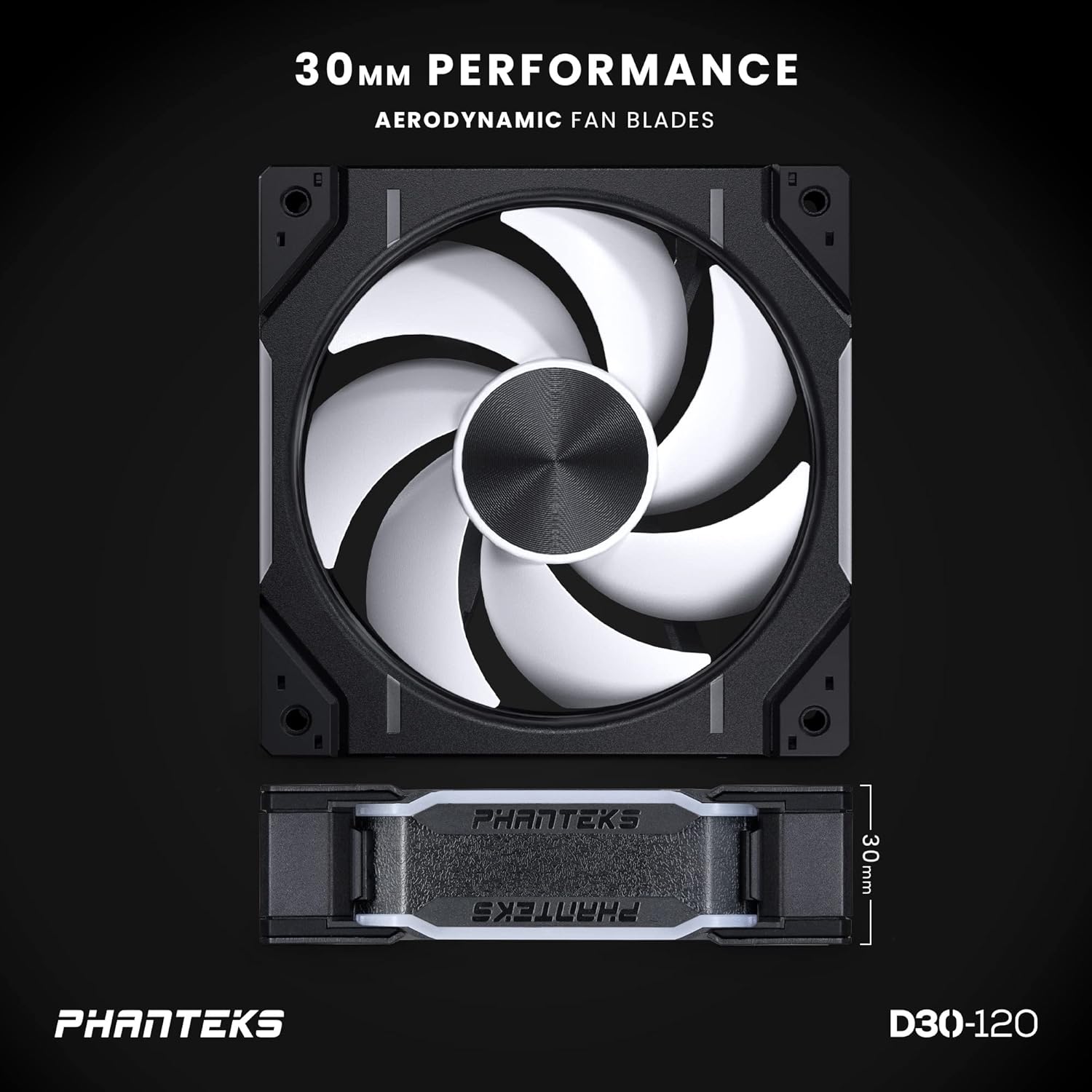

- 30 mm of performance: On a radiator or behind restrictive mesh/dust filters, the 30 mm thick frame and blades provide plenty of air pressure to keep things cool.
| UPC | 886523002949 |
|---|---|
| Brand | Phanteks |
| Color | BLACK |
| Series | D30-120, Black, 3 Pack |
| Voltage | 12 Volts |
| Wattage | 10 watts |
| Material | Copper |
| Item Weight | 2.11 pounds |
| Noise Level | 30.2 dB |
| Manufacturer | Phanteks |
| Cooling Method | Fan |
| Number of Items | 1 |
| Item model number | PH-F120D30_DRGB_PWM_BK01_3P |
| Compatible Devices | Radiator |
| Product Dimensions | 4.72"L x 1.18"W x 4.72"H |
| Power Connector Type | 4-Pin |
| Item Dimensions LxWxH | 4.72 x 1.18 x 4.72 inches |
| Maximum Rotational Speed | 2000 RPM |
| Global Trade Identification Number | 00886523002949 |
