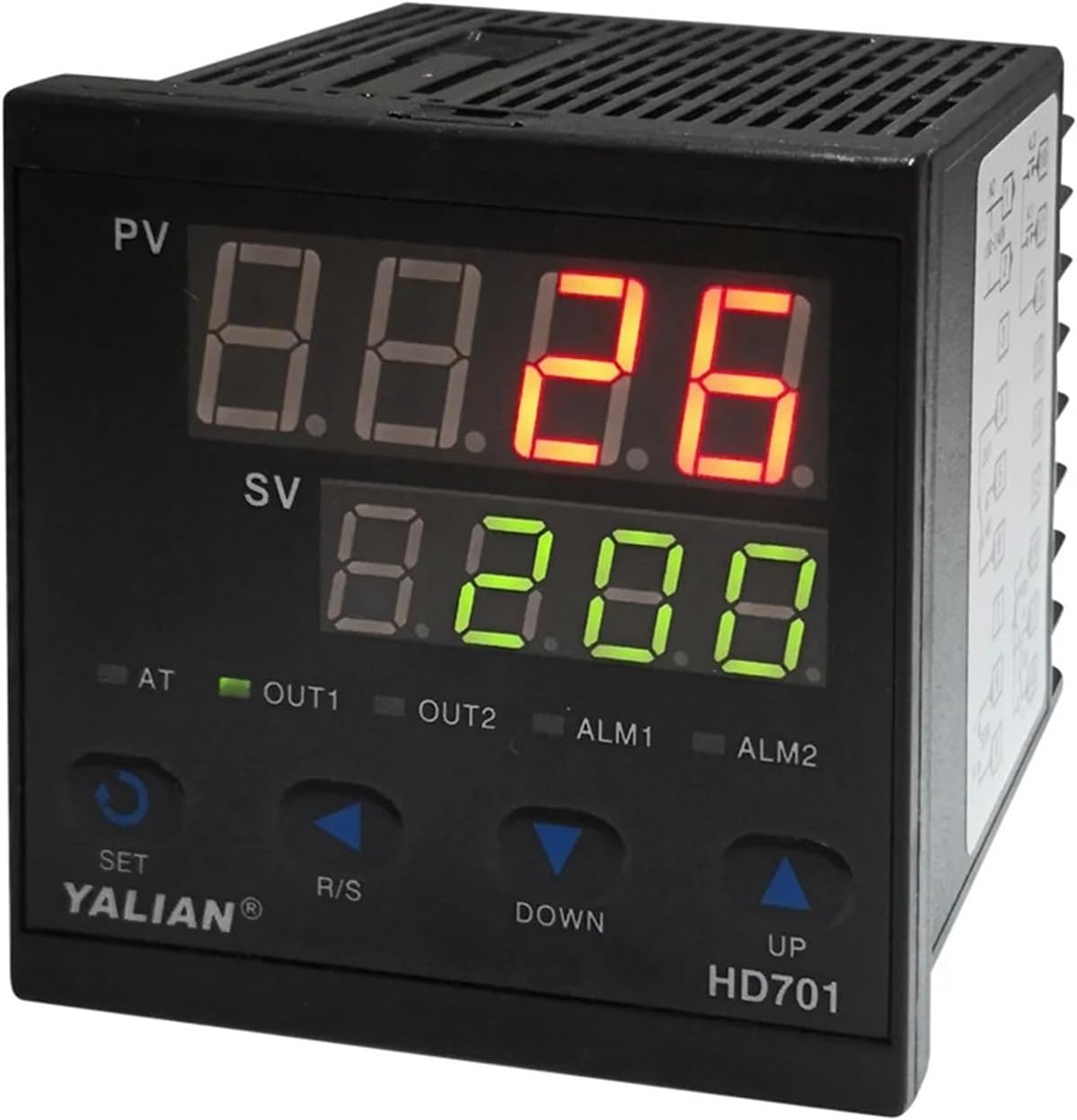

Pid Temperature Controller Industry thermoregulator AC 100 to 240V Max Temperature 1372 ºC for Sous Vide Home Brewing Oven(HD402)

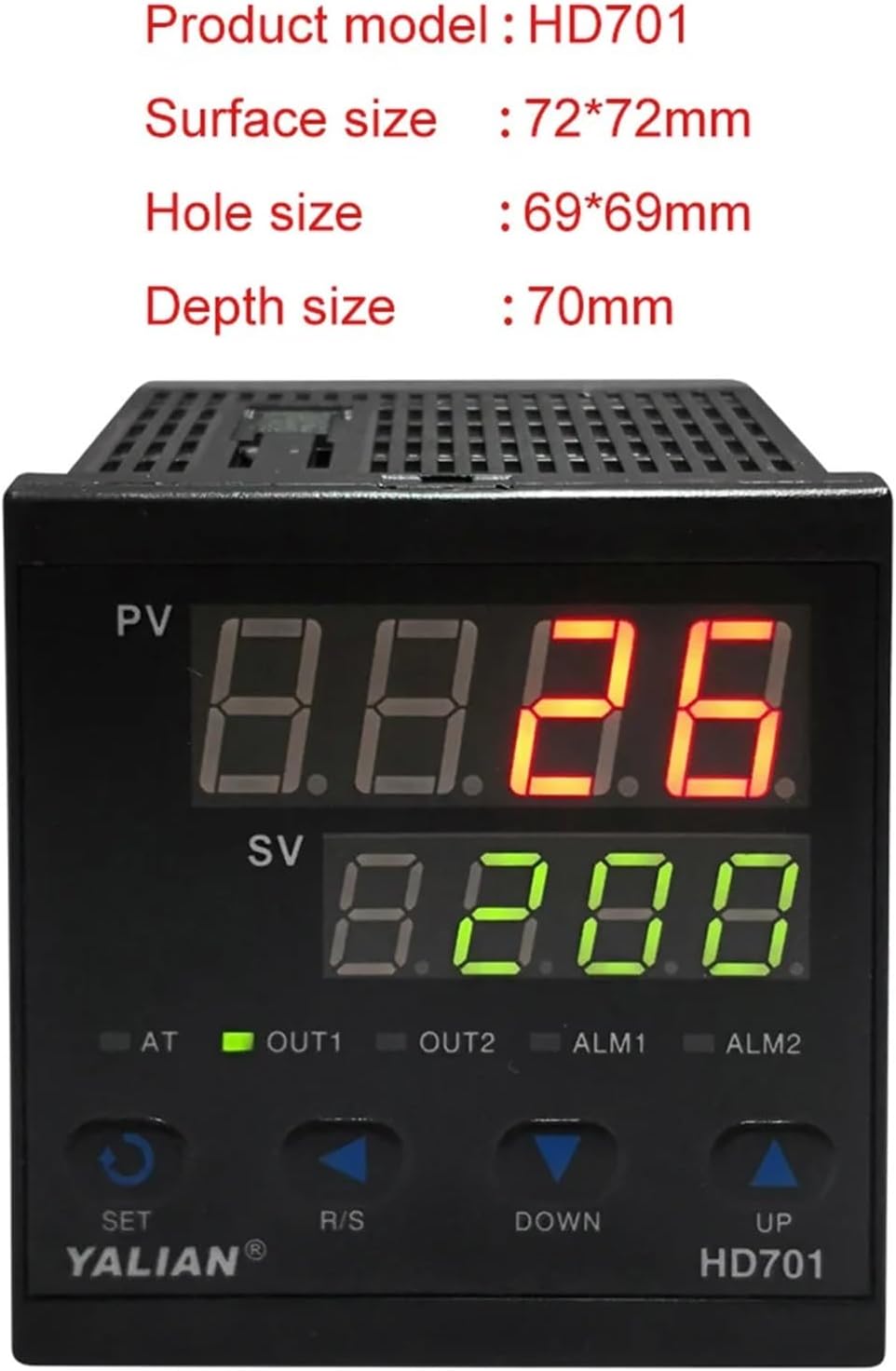

Temp Control SensorProduct Features:Dual display for both set temperature and process temperatureSize, 48*48mm, 72*72mm, 48*96mm, 96*96mmUniversal input, support 10 different types ofthermocouples and RTD inputs by customers selected at panels.Uses it in Heating Control as well as for Cooling controlAuto-tune function can find the best PID parameter automaticallyDisplays temperature inCelsius(°C)Uses it for Kiln,Furnace,Oven,Incubator temperature controLIt is used in various industries to control and monitor process temperatProduct Main Specifications:Input TypeThermocouple: K, E, S, R, J, T, BRTD: Pt100, Cu50( The Usercan set the input signal type according the requirement. )Input Range0 ~+1372ºC K(this is the default setting. Usercan set thetemperaturerangewhich you wanted.)DisplayTwo lines, Four digitsin Celsius °C.Display Resolution1°C, or 0.1°CifPt100 inputAccuracy+/-0.5% or +/-1 unit of full input rangeControl modePID,ON/OFFControl OutputRelay contact: 3A at 240 VAC.AlarmAlarm 1 ( Upper-limit bias alarm , User can change to beother Alarm Mode.)Power Consumption<;2 WattPower Supply100~240V AC, 50/60Hz.Item outline DimensionsHD101 48*48*70mmHD40248*96*70mmHD70172*72*70mmHD90196*96*70mmMounting Hole SizeHD10146*46mmHD40246*93mmHD70169*69mmHD901 93*93mmModel Number : HD101 HD401 HD701Display Size : 2.0 - 3.9 InchesOrigin : Mainland ChinaMax Measuring Temperature : 120°C & AboveStyle : EmbeddedUsage : Industrialalarm : 1 group alarmdisplay : 2 lines displaymodel : HD101 HD401 HD701 HD901

• Temp Control Sensor
• Temperature controller
