Planetary Gearbox Speed Reducer Gear Head Ratio 10:1 Backlash 7 arc-min for 14mm / 12.7mm Shaft nema34 86mm Stepper Motor Planetary Reducer 3500RPM Gear Box Reducer
$94.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by the3dwallet.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$94.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by the3dwallet.com
Free 30-day returns Details
Product details
| Management number | 219313497 | Release Date | 2026/05/03 | List Price | $38.00 | Model Number | 219313497 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

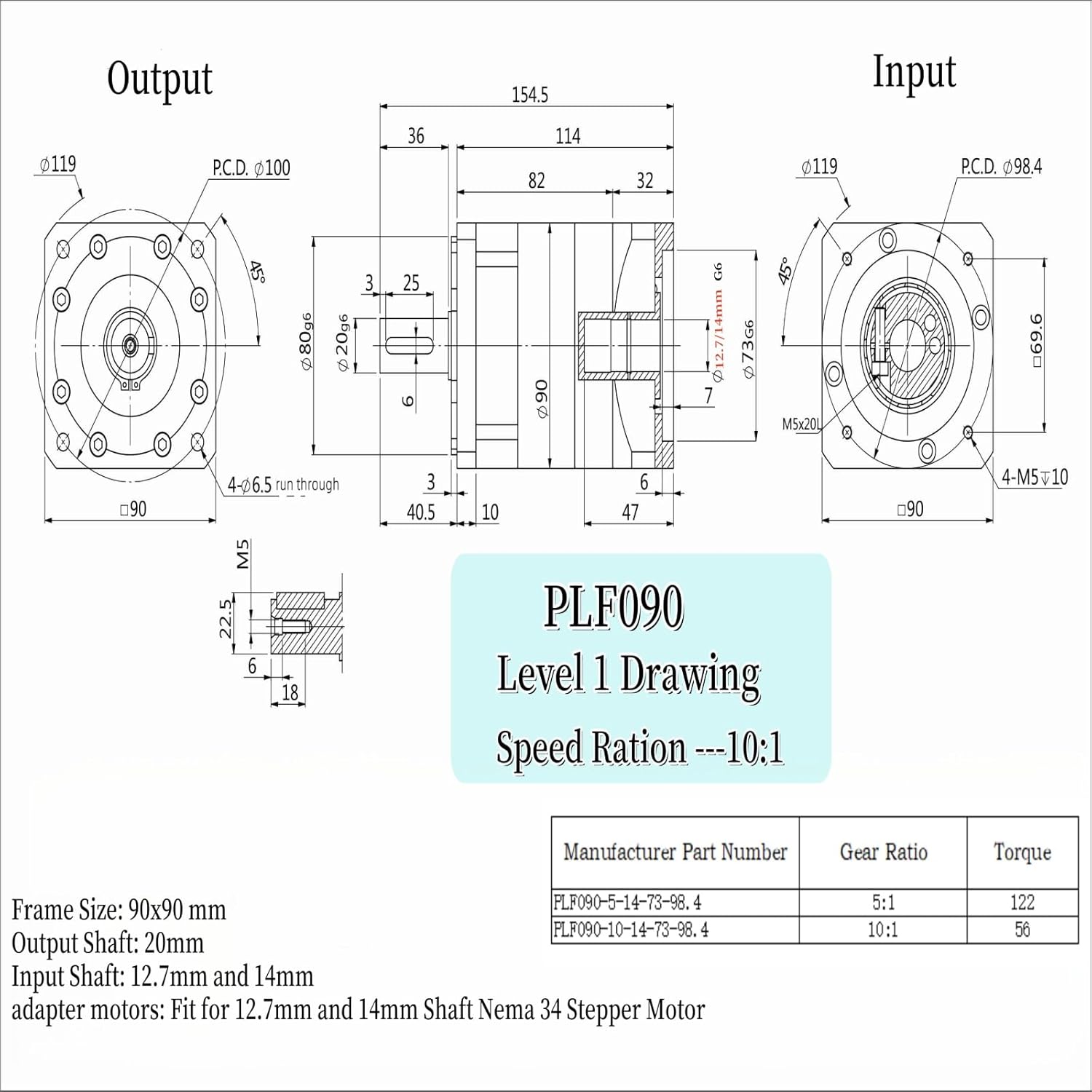

- RPlanetary gearbox for Nema34 86mm Stepper Motor. Reduction box frame size: 90x90 mm(3.54 inch). Gear reduction box output shaft: 20mm(0.78 inch); gear reducer input shaft: 14mm( 0.55 inch) and 12.7mm(0.5 or ½inch). Body length: 154.5mm(6.08 in).
- Gear Ratio: 10:1. Backlash Precision: <= 7 Arcmin, Full load efficiency: 96%, max input speed: 6000rpm, rated input speed: 3500 rpm, Torsion rigidity: 1.8Nm/arcmin.
- It's a good solution in applications that need low rotation speeds and/or lots of huge torque. Advantages: Special grease, non-solidifying, long-lasting lubrication,lifespan is around 20000h; Lower noise: less than 60dB.
- Applications: Compact design, flexible and easy installation, space-saving. This planetary gearbox is mainly used to reduce speed and increase holding torque, widely applied in CNC machine, such as engraving machine, milling machine, lathe, work bench, grinding machine etc.
- Included:1pc x Planetary Gearbo, 4pc x Screws, 1pc x 14mm to 12.7mm shaft adapter - the function of the shaft adapter is to modifies the input bore of the gearbox. The standard 14mm input bore fits a NEMA 34 stepper motor with a 14mm output shaft, when the 12.7mm adapter is installed, it accommodates a NEMA 34 stepper motor with a 12.7mm (½-inch) output shaft.
| Speed | 3500 RPM |
|---|---|
| Brand Name | TOSEASTARS |
| Item Weight | 7 Pounds |
| Part Number | PLF090-10-12.7/14-73-98.4 |
| Manufacturer | TOSEASTARS |
| Material Type | Alloy Steel |
| Included Components | Planetary Gearbox |
