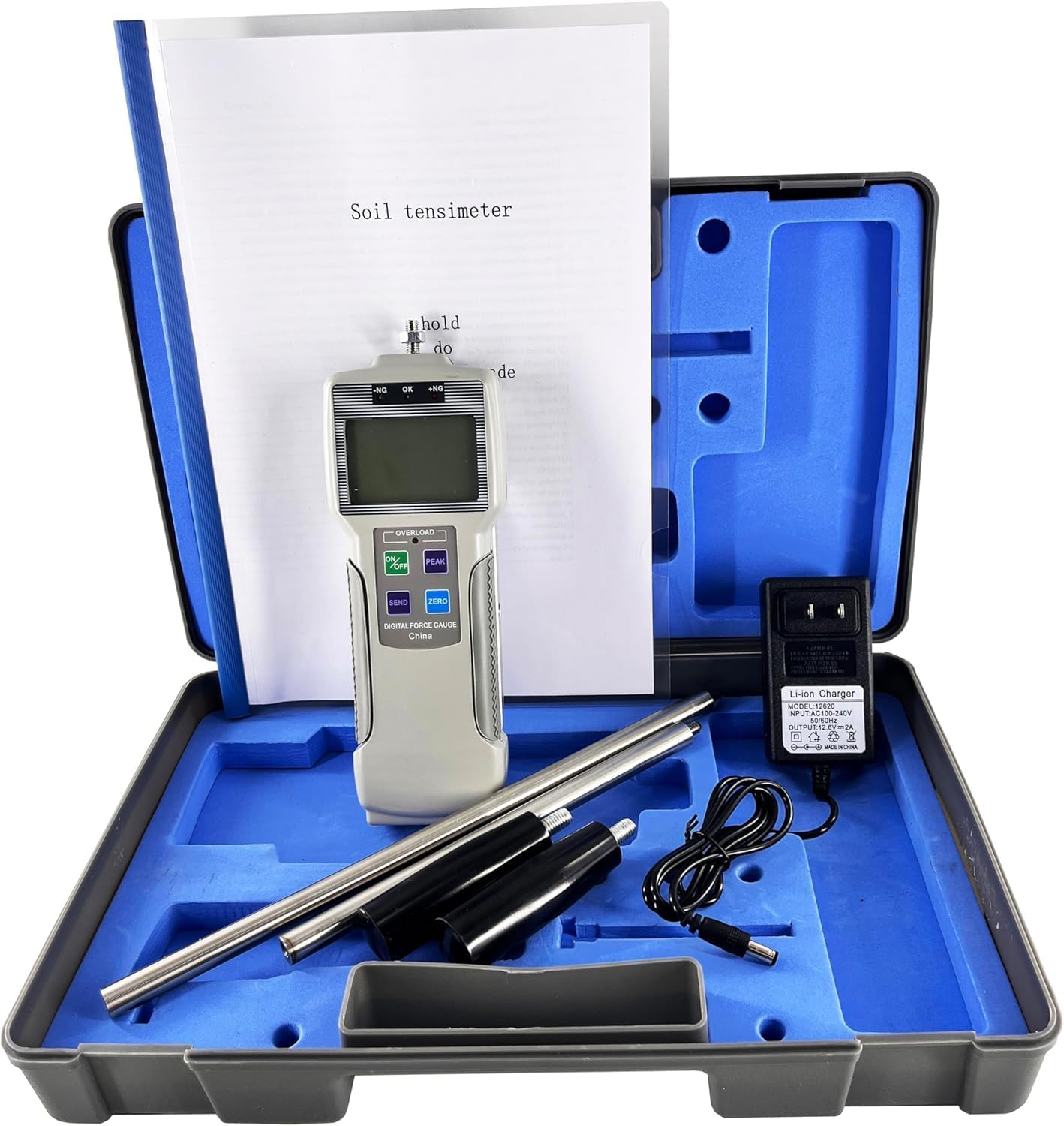

Soil Compaction Tester Soil Load Penetrometer Soil Hardness Tester Soil Firmness Meter Soil Penetration Resistance Tester with Total Measuring Depth 50cm 0~100kg/cm²,0~1000N/cm²,0~10000kPa

Overview:◆Soil compactness is also called soil hardness or soil firmness or soil penetration resistance. ◆It is generally expressed as the resistance (in Pa) of a metal plunger or probe when it is pressed into the soil. ◆Soil firmness is the ability of the soil to resist compaction and breakage by external forces and is one of the aspects of soil properties. ◆In addition, soil physical properties include soil texture, structure, porosity, etc. ◆It involves the firmness, plasticity, permeability, drainage, water storage capacity, and ease of root penetration.◆Soil firmness consists of soil shear force, compression force and friction force. ◆It is a synthetic indicator of the strength of the soil. When a metal plunger or probe is pressed into the soil, it is divided into two methods: dynamic load and static load, and the measured values differ from method to method, but there is a connection. ◆The shape of the plunger has a cone, flat head, round ball and wedge, etc. ◆These also have an effect on the measured value. The measured values for the same method are mainly determined by the soil texture, weight capacity and water content. Of these, water content has the greatest influence. ◆Soil compaction predicts soil bearing capacity, tillage and resistance to root extension. ◆Soil firmness is an important indicator of soil physical properties and is used to evaluate soil tillage. ◆Firm soils can prevent water infiltration, reduce fertilizer utilization, affect plant root growth, and lead to crop yield reduction. Specification:◆Range:0~100kg/cm²,0~1000N/cm²,0~10000kPa◆Probe Length: 30cm; Connection Rod Length: 20cm; Total Measuring Depth: 50cm◆Accuracy: +/-0.2% full scale +/-1 digit◆Measuring device: Kgf(gf)/lbf/N can be selected◆Display: 5-digit LCD liquid crystal display - device - mode - overload LED liquid crystal display - comparison LED liquid crystal display (reversible)◆Sampling speed: 1000 times/second◆Display update: <10 times, >15 times◆Overload capacity: 120% of the full range (LCD, LED flashing and buzzer sounding)◆A/D transducer: 16-bit signal◆Microprocessor: 8-bit high-performance microprocessor◆Battery operating time: all charged can be used continuously for about 10 hours◆Charging time: about 8 hours◆Use temperature: 0～40℃◆The use of humidity range: 20% ~ 80%RH relative humidity◆Power supply: internal NIMI rechargeable battery, AC adapter◆Output: USB, RS232C, analog output◆Output parameters: analog (-2 to +2V), comparison signal (-NG, OK, +NG), open collector MAX 30V 10mA, ultra-negative Ho alarm output (OVL), open collector MAX 30V 10mA◆Peak hold: pressure or tension◆Compare function: settable high/low set point with code◆Storage function: 999 measured values◆Display flip-flop function: measured value and measurement units◆Alarm: overload and +NG (off / on selectable)◆Package:Host; Software; Aluminum plate; Straight handle; Hexagon socket bolts; Probe; Connecting rod; Charger; Plastic box; Instructions; Certificate of conformity Features◆(1) automatic zeroing (1 second - 60 seconds setting)◆(2) Damping mode (4 level settings)◆(3) key sound can be turned off or on to choose◆Automatic power off function: 1 minute - 60 minutes can be selected ◆External connection switch: display hold, clear zero, and peak/tracking selection◆Measurement calibration: can be calibrated by themselves to suit the environment changes◆Gravitational acceleration: can be adjusted for gravitational acceleration◆Dimensions and weight◆Main body: length 220.5×width 78×height 32.3mm, about 520g◆Mainframe + back panel + handle: length 230.5×width 90×height 44.5mm, about 1150

• Range:0~100kg/cm²,0~1000N/cm²,0~10000kPa
• Probe Length: 30cm; Connection Rod Length: 20cm; Total Measuring Depth: 50cm
• Measuring device: Kgf(gf)/lbf/N can be selected
• Measurement calibration: can be calibrated by themselves to suit the environment changes
• Gravitational acceleration: can be adjusted for gravitational acceleration
