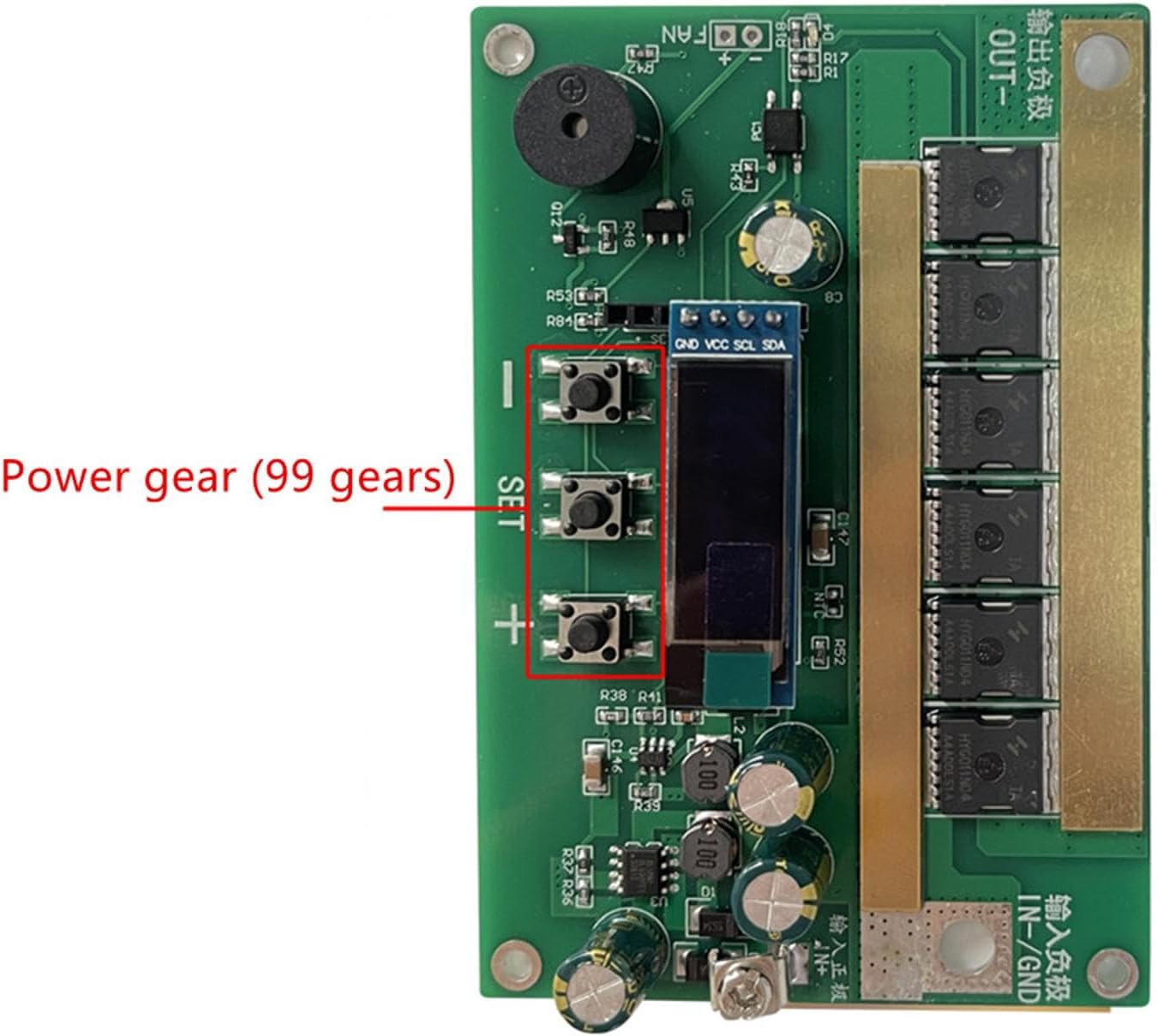

Spot Welder 99 Gears Mini Spot Welding Machine Support Farad Capacitor PCB Circuit Board DIY Kits for 18650 Lithium Battery

Features:Imported MOS pipe *12, spot welding peak current up to 3600A.Conductivity and heat dissipation, can work continuously for a long time.Equipped with fan interface, turn on when the temperature exceeds 45 degrees, and there are fixed buttons and display on the motherboard for easy adjustment.Bilateral outlet, easy to spot weld, the product is marked, not easy to connect wrong.This product requires you to bring your own power supply, support 12V20AH~12V65AH. The working current of the power supply equipment is about 100A~900A, and supports 0.1-0.3mm nickel-plated sheet welding.Specifications:Working voltage: 6.5V - 16VWorking current: <20mAStandby power consumption: <0.5mARecommended working temperature: -10 ~ 60℃Welding peak current: 3600A MaxWelding nickle sheet thickness: 0.1 - 0.3mm (related to the battery discharge energy)Size: 120 x 96 x 14mmNet weight: 212gPackage include:1 Set Spot Welder

• Imported MOS pipe *12, spot welding peak current up to 3600A.
• Conductivity and heat dissipation, can work continuously for a long time.
• Equipped with fan interface, turn on when the temperature exceeds 45 degrees, and there are fixed buttons and display on the motherboard for easy adjustment.
• Bilateral outlet, easy to spot weld, the product is marked, not easy to connect wrong.
• This product requires you to bring your own power supply, support 12V20AH~12V65AH. The working current of the power supply equipment is about 100A~900A, and supports 0.1-0.3mm nickel-plated sheet welding.
