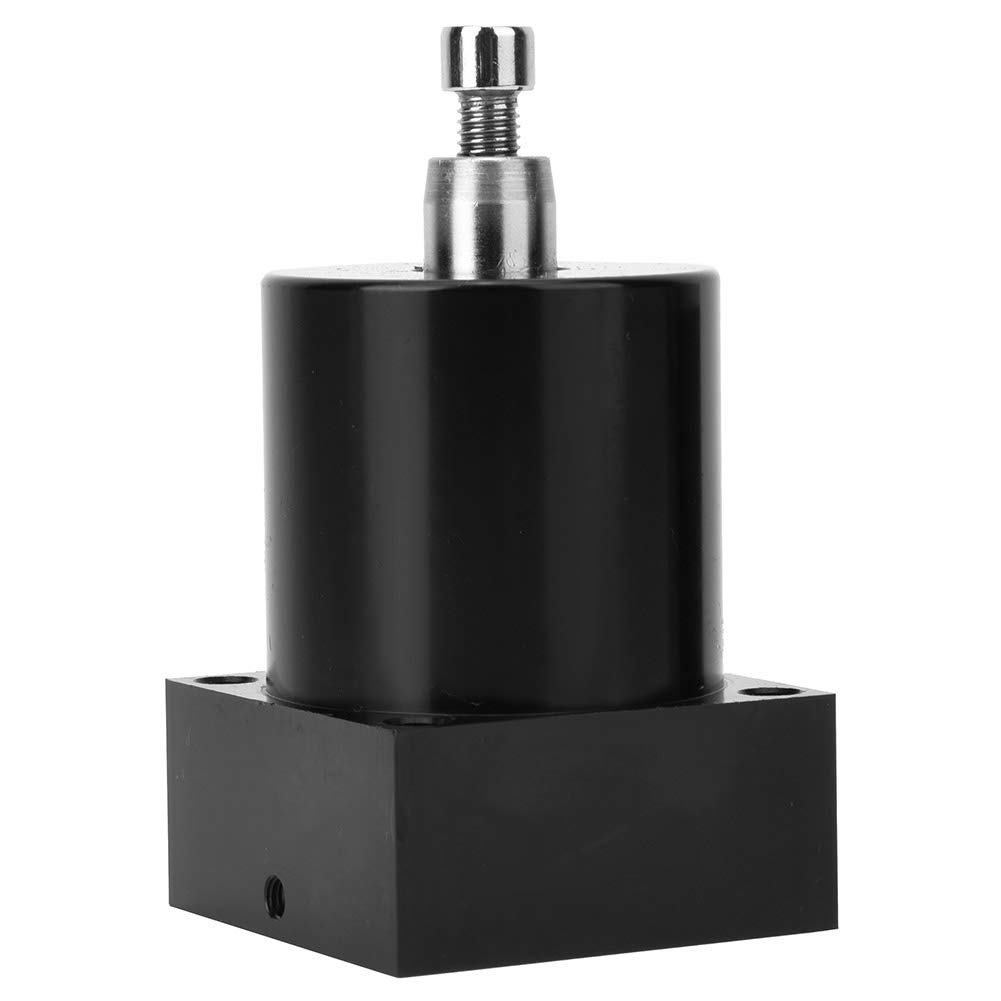

SRC40 Pneumatic Swing Clamp Cylinder 90 Degrees Rotary Clamping Cylinder (SRC40X90R)
Product details
| Management number | 211682500 | Release Date | 2026/04/04 | List Price | $11.60 | Model Number | 211682500 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

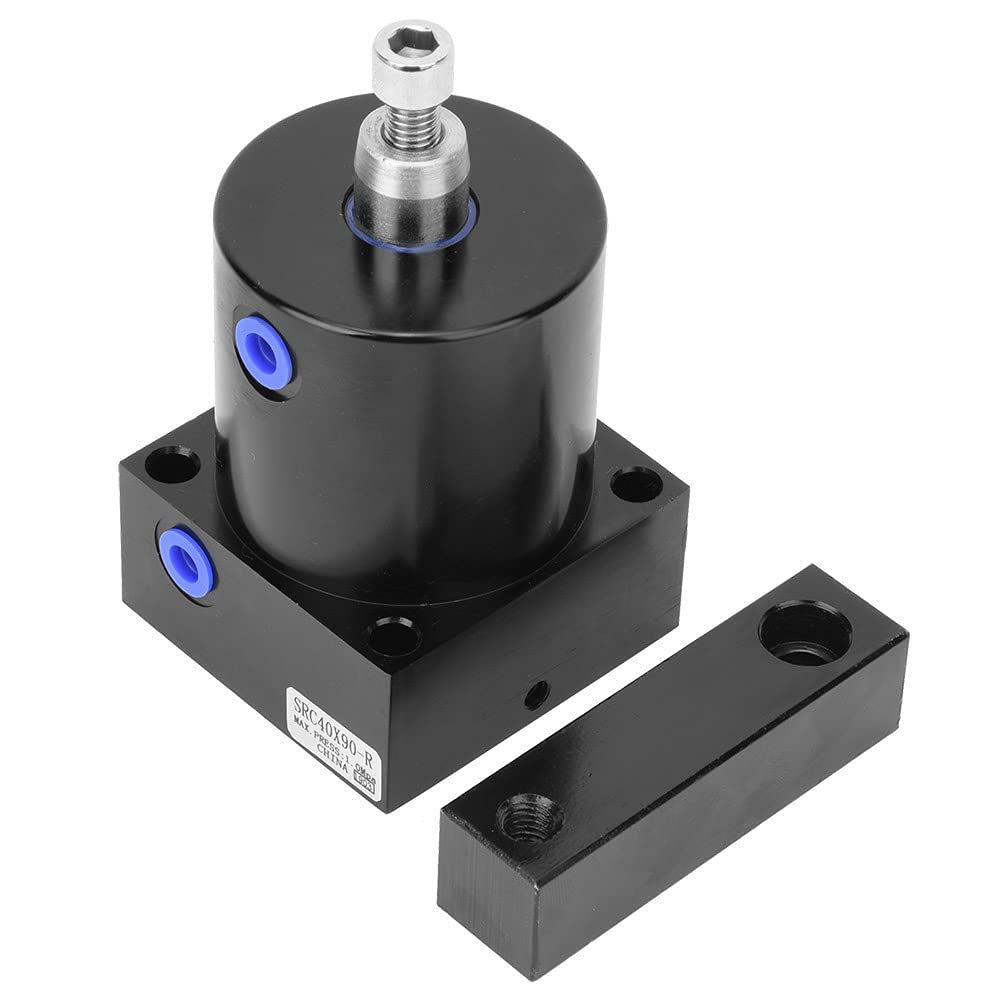

Specification:Item Type: Pneumatic Swing Clamp CylinderOptional : SRC40X90L, SRC40X90RBore Diameter: Approx. 40mm / 1.6inFunction Form: ReciprocatingUse Fluid: Filtered Compressed AirMaximum Withstand Pressure: 10.3kgf/cm(Kpa)Use Pressure Range: 1-7kgf/cm(Kpa)Swing Stroke: Approx. 9mm / 0.4inPressing Stroke: Approx. 13mm / 0.5inFixed Hole Diameter: M7Rotation Angle: 90+-2°Direction Of Rotation: Turn Left -L; Turn Right -R Package List:1 x Pneumatic Swing Clamp Cylinder1 x Arm Lever
- Durable to use - The hard protective layer is resistant to wear and and can be used in harsh working environments.
- High Quality - The cylinder block is made of pure aluminum block by CNC machining center, non-die-cast aluminum, high density and high strength, supporting long time work.
- Long Service Life - The surface is hard oxidized in process the inner wall of the cylinder mirror ,to extend the service life of the cylinder.
- Features - High consistency of inlet and outlet, quick installation of joints, not easy to leak;optional in Turn Left -L and Turn Right -R.
- Use Pressure Range - 1-7kgf/cm(Kpa)
| Item Weight | 4.2 ounces |
|---|---|
| Manufacturer | Marhynchus |
