Topping PA3S Power Amplifier MA12070*2 Class D Fully Balanced Single Ended AMP 80W*2 RCA TRS Power Amplifier(Black)

PA3s Power Amplifier specifications ： SE IN： THD+N @1kHz (A-wt)： <0.0050% @4Ω 5W <0.0040% @8Ω 5W THD @20- 10kHz (20kBW)： <0.0080% @4Ω 5W <0.0070% @8Ω 5W SNR @MAX OuT 1kHz (A-W)：107dB Dynamic Range @1kHz (A-wt)：107dB Frequency Response：20Hz-40kHz ( ±0.1dB) Output Level： 46Vpp @4Ω 48Vpp @8Ω Noise (A-wt)： <70uVrms Channel Crosstalk @1kHz： Input sensitivity： -96dB Gain：25.2dB Channel Balance：0.5 dB Output Power： 80W x 2 @4Ω THD+N<10% 45W x 2 @8Ω THD+N<10% 65W x 2 @4Ω THD+N<1% 37W x 2 @8Ω THD+N<1% Adapter Impedance：4-8Ω BAL IN： THD+N @1kHz (A-wt)： <0.0045% @4Ω 5W <0.0040% @8Ω 5W THD @20- 10kHz (20kBW)： <0.0070% @4Ω 5W <0.0060% @8Ω 5W SNR @MAX OuT 1kHz (A-W)：112dB Dynamic Range @1kHz (A-wt)：112dB Frequency Response：20Hz-40kHz ( ±0.1dB) Output Level： 46Vpp @4Ω 48Vpp @8Ω Noise (A-wt)：<70uVrms Channel Crosstalk @1kHz：-100dB Input sensitivity：1.75Vrms Gain：19.5dB Channel Balance：0.5 dB Output Power： 80W x 2 @4Ω THD+N<10% 45W x 2 @8Ω THD+N<10% 65W x 2 @4Ω THD+N<1% 37W x 2 @8Ω THD+N<1% Adapter Impedance：4-8Ω

• 【Comfort zone" with lowest distortion】The lowest THD+N of PA3s is in the range of 10-20W output, which happens to be the power range commonly used for listening to music. Everything is just in the right condition.

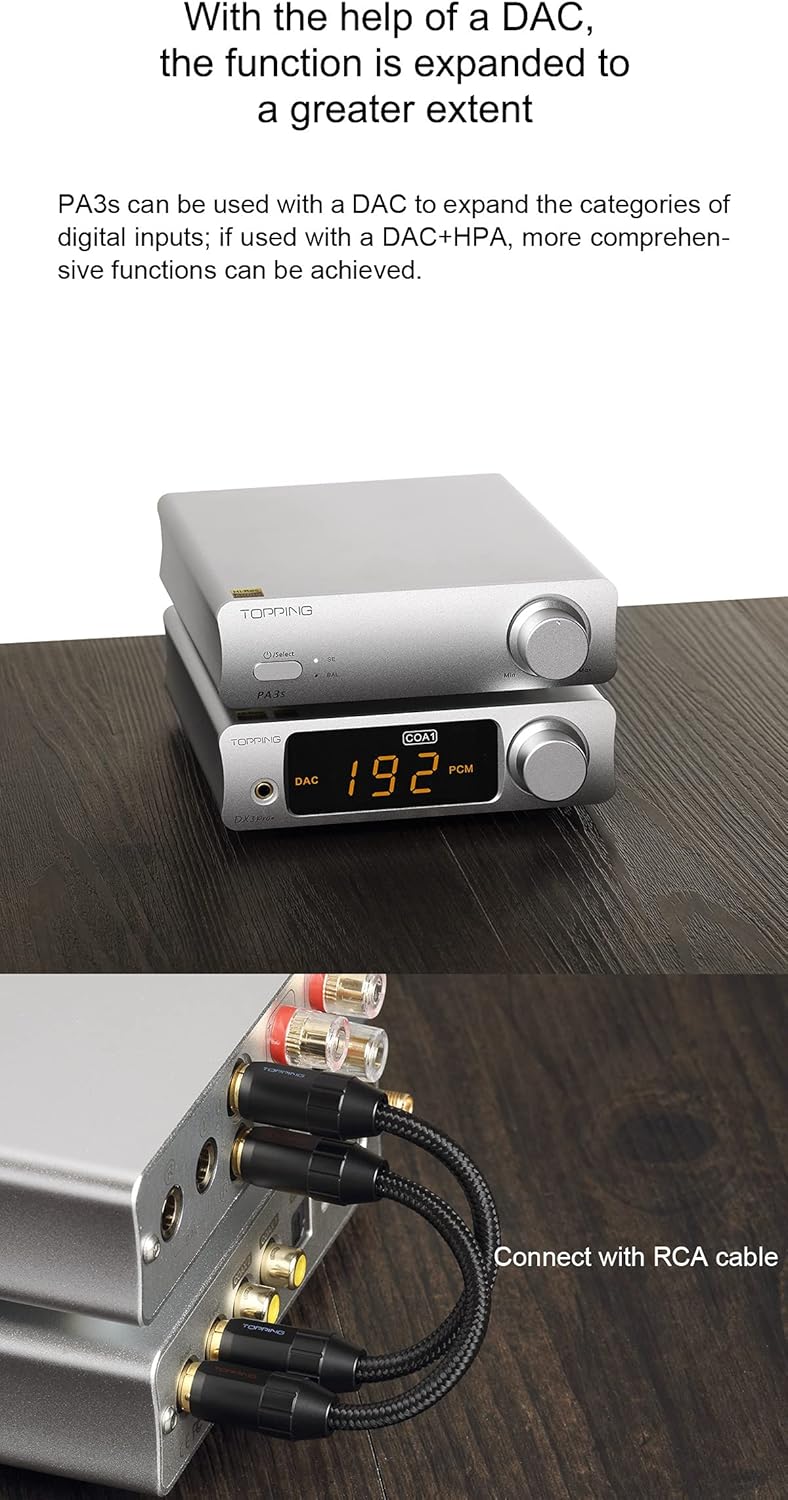

• 【With the help of a DAC, the function is expanded to a greater extent 】PA3s can be used with a DAC to expand the categories of digital inputs; if used with a DAC+HPA, more comprehen sive functions can be achieved.
• 【Balanced + Single- ended inputs】PA3s provides TRS balanced input and RCA single: end- ed input. The u use of balanced input eliminates potential ground loop problems giving the pristinely clean audio without any hum.
• 【High output power】PA3s could output 80W x2 at 4ohm load, 10% THD+N. In higher standard of THD+N of 1%，output power will be 65W x2 at 4ohm load. The output power is enough to drive any bookshelf speakers and even some floor speakers.
• 【2xMA12070 Fully balanced Class D amplifier 】Each channel of PA3s uses one MA12070 Class D power amplifier chip. This allows separation in layout improving performance and reducing crosstalk. The power is shared across two chips, the heat dissipation is also halved for each chip, improving reliability and extending the lifespan of the product.
